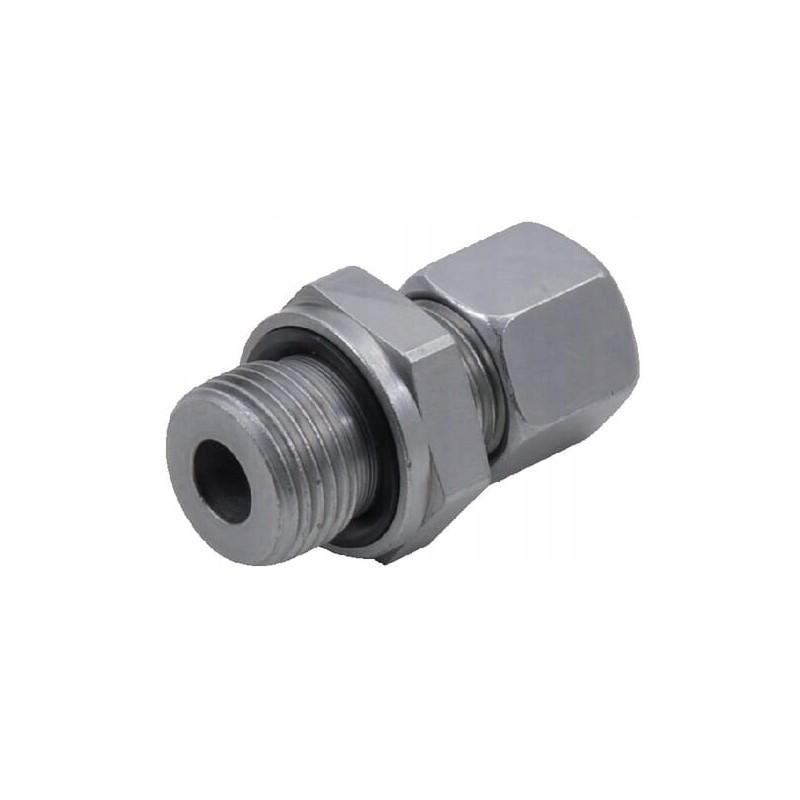

Straight connection with nut and seal M22x1.5 15L - M18x1.5 Parameters

Part number: GEV15LM18WD

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter : 15 mm

Connector No. 1 thread diameter: M22

Connector thread length: 12 mm

Connector No. 1 thread pitch: 1.50 mm

Connector #1 Wrench Size: 24.0mm

Connector #2 Type: Seal

Connector #2 Male/Female Type: Male

Diameter connection no. 2 thread: M18

Connection no. 2 thread pitch: 1.50 mm

Connection no. 2 thread type: Metric

Wrench size for connection no. 2: 27.0 mm

Pipe diameter: 15 mm

ISO standard: 228

Max working pressure: 400 BAR

Seal material: Nitrile rubber [NBR]

Series: 15L

Advantages

- Cutting ring 2S

Product details

- Cutting ring 2S cutting tool - Optimal connection with the cutting ring and perfect operation

- High corrosion resistance - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request

Dimension from the axis of the connector to the end of the next connector

28.5 mm

Dimension from the axis of connector no. 2 to the end of the next connector

13.5 mm

DIN standard

- 2353

- 228

- 3852

- 2401

Machining surface

- Zinc

- Nickel-plated
