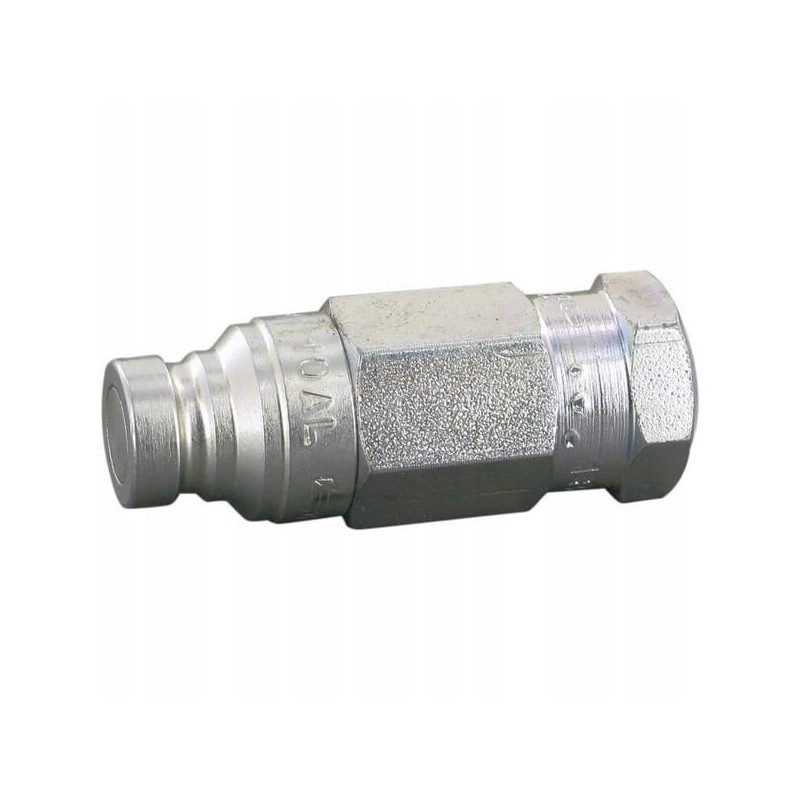

Flat quick connector ffh plug 1 8 internal 1 8 bsp

Flat quick connector FFH plug 1/8 internal thread 1/8 BSP INDEX: FFH0218GASM

Material: Carbon steel

Specifications: - One-hand connection - With special flat valve - Protection against accidental disconnection

Benefits: - Easy operation - Minimum leakage rate - Connection without air inclusions

Features: - Highest corrosion resistance - With double-sided shut-off - Induction hardening in places exposed to rapid wear - Cannot be connected under pressure

Valve type: Flat

Shape: Straight - 2 sides of connection

Application: - Can be used in ecologically sensitive areas - Hydraulic tools - Construction and agricultural machinery - Ship construction - Fluids based on mineral oil

Size: 3.2 mm

Outer diameter: 18 mm

ISO standard: 16028

Series: FFH

Connection diameter: 11.6 mm

Surface treatment: Zinc

Nickel-plated

Total length: 44 mm

Seal material: Nitrile rubber [ NBR]

Weight: 45.7 g

Working pressure: 350 BAR

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: No

Working temperature max: 125°C

Working temperature min: -25 ° C

Type quick connector locks: Balls around the circumference

Connection method: Press to connect

Disconnection method: Sleeve displacement

Connector type no. 2: Thread

Connection no. 2 thread diameter: 1/8 inch

Connection thread type no. 2: BSPP

Number of threads per inch thread of connector no. 2: 28

Flow at pressure 2 bar: 12l/min

Type of connector no. 1: Quick connector

Type of connector no. 1 - male/female: Male

Wrench size of connector no. 1: 16 mm

Diameter of connection no. 1: 0, 46inch
