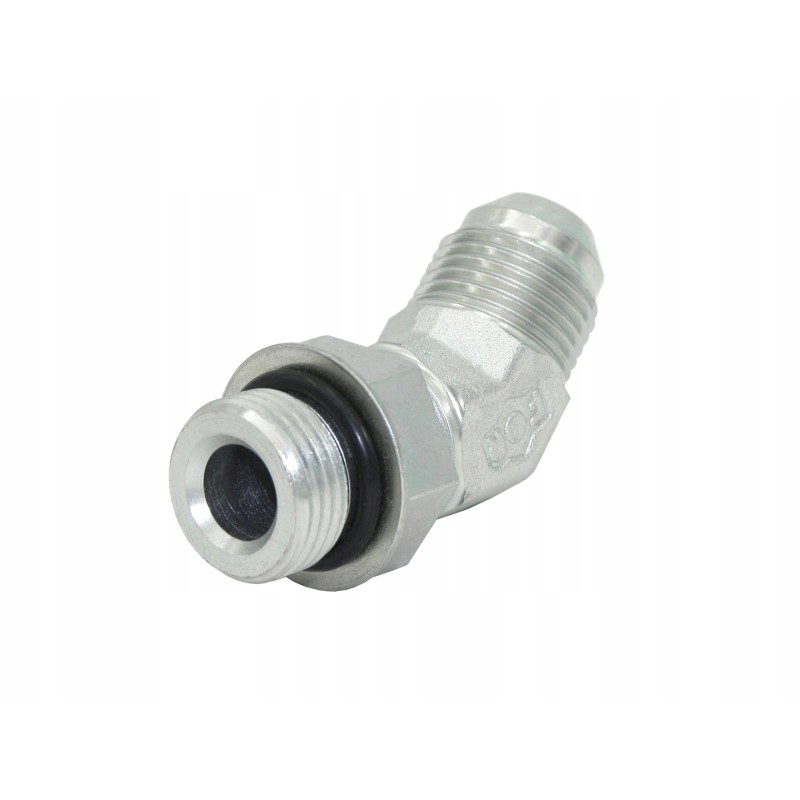

Hydra elbow with locknut unf 1 1 16 45 degrees

HYDRAULIC ELBOW WITH LOCK NUT UNF 1.1/16'' 45 DEGREESApplication:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connection bodies included with a lock nut, sealing washer and gasket . The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side (with a seal and lock nut), the other side with external thread and cone for connecting to the hydraulic hose.

Technical data:

Thread on both sides: external inch UNF 1.1/16''

Pressure nominal: 180bar

Maximum pressure: 230 bar

Type of liquid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
