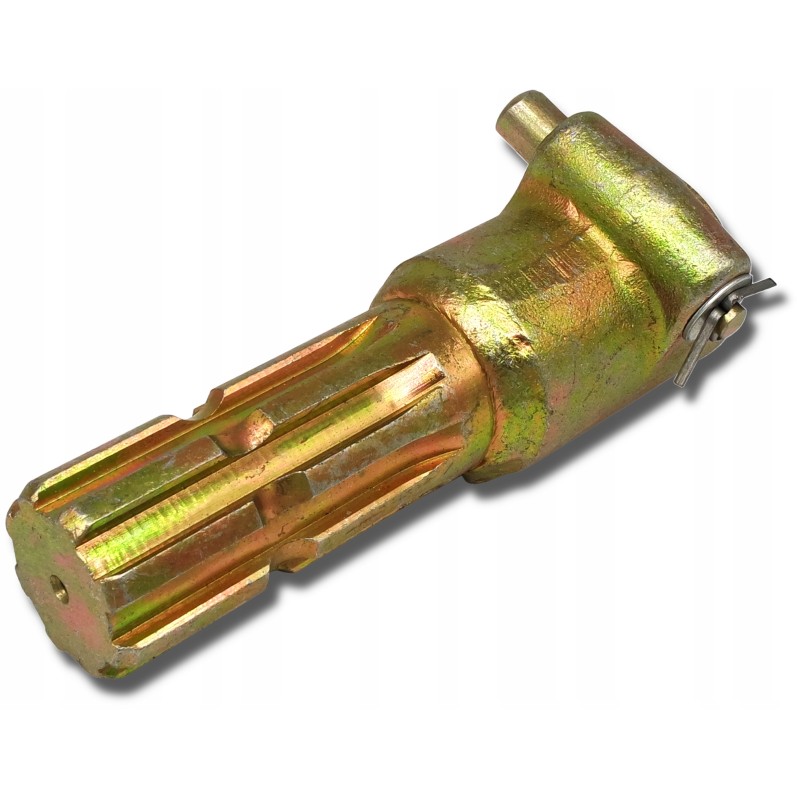

Quick coupler reduction PTO shaft 6 8 Mtz Jumz T 25

REDUCTION FOR PTO SHAFT 6/8 FOR MTZ, JUMZ, T-25. REDUCTION LENGTH = 161MM SKRAW-MET CODE: [3167] The quick coupling allows the use of a Russian type of shaft for 8 cutters in Polish tractors with a PTO shaft for 6 cutters.

The shaft reduction is secured by a spring pin.

Technical specifications: Length - 161 mm

Pin diameter u tooth base - 28mm

Diameter of the pin at the top of the tooth - 35 mm

Length of the pin - 91 mm

Diameter of the lower part of the reduction - 48.5 mm

Inner diameter at the base of the tooth of the reduction part - 32 mm

Inner diameter at the top of the tooth of the reduction part - 38 mm

Outer diameter of the part reducing part - 50mm

Depth of reducing part - 60mm
