Electric distributor 4 sec 40l 24v control panel

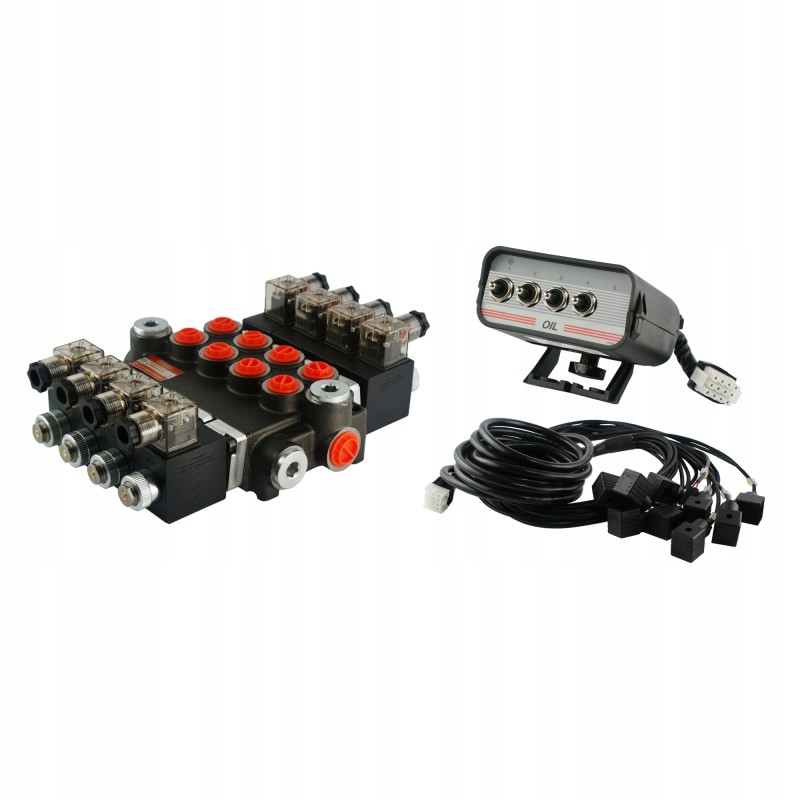

HYDRAULIC DIVIDER, 4 SECTIONS, 40L/min, ELECTRICALLY CONTROLLED 24V WITH CONTROL PANEL AND CABLE HARNESS Manifold production:

Original product Badestnost Bulgaria, symbol: 04Z50 A ES3 24VDC G

Panel production:< p>

Original product of the Hydrolider brand, symbol: 1.10.62.004

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines, such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other devices with a hydraulic system.

The panel allows you to control four sections in an electrically controlled hydraulic distributor

A set of cables enabling the electrical connection of the distributor with the control panel.

Technical data:

The set includes a distributor, control panel with a set of cables and plugs.

Recommended oil flow in the system: 0 - 40 l/min.

Example control: four double-acting actuators.< p>

Possibility of serial connection to an existing system (pressure sleeve required).

Control:

All sliders are three-position (1 - 0 - 2), spring-loaded, i.e. they return to the neutral position by themselves after cutting off the power supply. When the slider is in the neutral position (0), the oil flows freely through the distributor to the return channel, the pump then does not work on pressure and is relieved.

Principle of slider operation:

Position 0 neutral (the power supply to both coils is cut off) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (product flow only to the first coil), the actuator piston rod extends.

Working position 2 (product flow only to the second coil), the actuator piston rod retracts.

On the right side, a hydraulic diagram of the distributor:

GENERAL INFORMATION ELECTRICAL DISTRIBUTOR:

Current:

Power supply direct current (DC) 24V

-------------- -------------------------------------------------- -----------------------------

Connection:

Power supply from the pump (P1, P2): BSP 1/2'' female thread

Return to tank (T1, T2): BSP 1/2'' female thread

Sections (A1, A2) , A3, A4 , B1, B2, B3, B4): BSP internal thread 3/8''

Series connection (N): BSP internal thread 1/2'

- -------------------------------------------------- -----------------------------

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 10 l/min

190 bar at 20 l/min

200 bar at 30 l/min

210 bar at 40 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

----------------------- -------------------------------------------------- ----------------------

Oil types recommended by AGRICOLA:

Thinner, high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

------------------------- -------------------------------------------------- -----

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

GENERAL INFORMATION CONTROL PANEL:

All up and down switches with automatic centering (1-0- 2) without a latch.

Each panel is sold complete with a two-meter power cable and a combined four-meter cable with plugs connecting the panel with the distributor. We also have sets of extension cables of 3m, 6m or 10m, which are available at other auctions.

When any switch is on, the signal is simultaneously transmitted to an additional pair of wires, which can be used to activate the warning signal (horn , cock) or the coil of the unloading valve (CETOP type distributors), possibly for switching on the pump via a relay.
