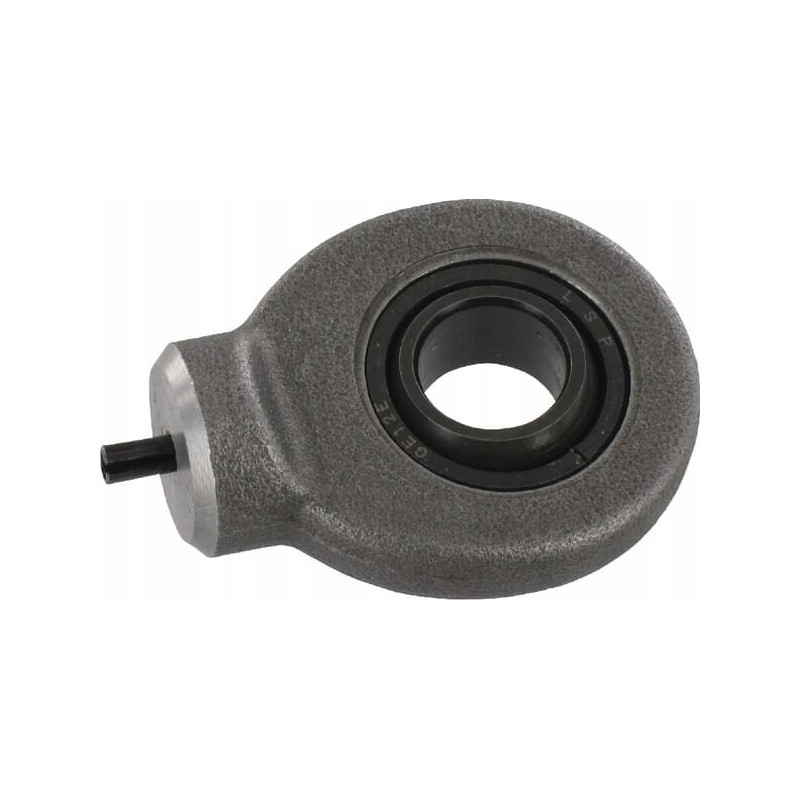

Actuator eye for welding oe 12 gk12 to mac area

Actuator eye to be welded ø 12 Parameters

Part number: GK12DO

Unit: piece

Manufacturer: Mac Power

EAN: 8052461090016

B: 10 mm

C1: 8 mm

D1: 14.9 mm

D2: 34 mm

D7: 3 mm

d: 12 mm

D6 [D6]: 17.5 mm

Spacing, center shaft base [H2]: 27 mm

ß [ß]: 11 °

H2: 27 mm

Height, housing [C1]: 8 mm

Height, inner ring [ B]: 10 mm

Inner Ø [d]: 12 mm

L6: 44 mm

L7: 18 mm

D7 [D7]: 3 mm

L7 [L7]: 18 mm

Length [L6]: 44 mm

Material : ST52-3 steel, forged

Standard: DIN 648

Outer diameter [D]: 22 mm

Width [D2]: 34 mm

Application

- Hydraulic cylinder

Properties

- Subject to mandatory maintenance.

- Cylindrical welding tip

- Centering pin with 45° welding edge at the end - Steel-steel sliding connection Outer diameter, inner ring [D1]

14.9mm
