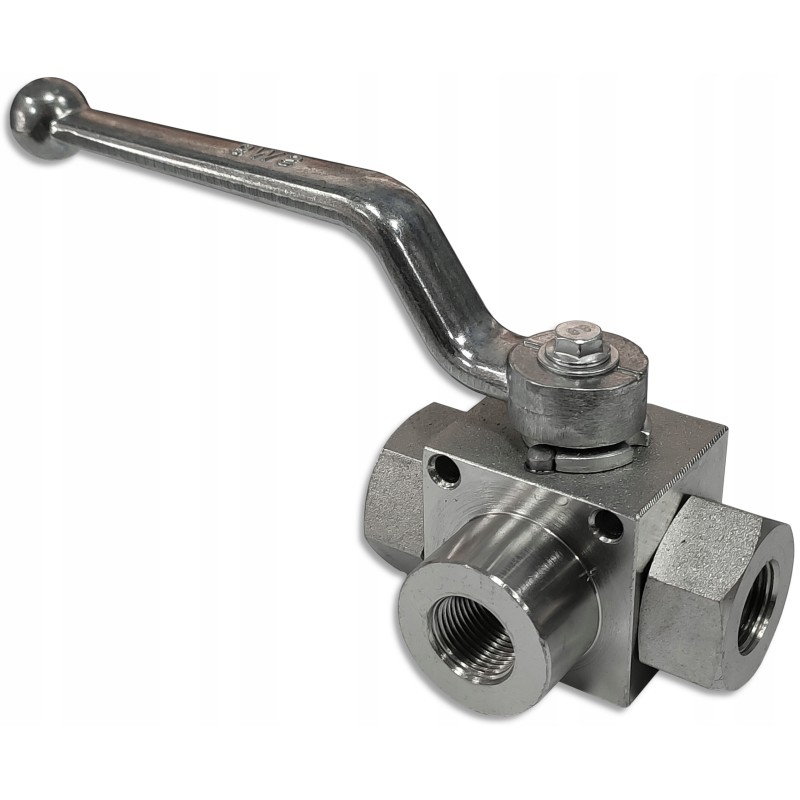

Hydraulic manual ball valve, 3-way, 1 4 25l

SOLID 3-WAY HYDRAULIC BALL VALVE G1/4' SKRAW-MET CODE: [2418]The hydraulic valve is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Valve high pressure ball - rotates 90 degrees - is used mainly for closing, opening and regulating the direction of liquid flow (e.g. hydraulic oil) between two independent hydraulic lines in the hydraulic system.

The valves are characterized by compact design, reliable tightness, simple construction and durability in many years of use at high pressure.

________________________________

To connect, simply connect the supply line to port P. Connect hydraulic lines to ports A and B, between which the flow direction is regulated. Technical specifications: Maximum flow: 25 L/min

Threads internal: G1/4'

Maximum liquid pressure: 500 Bar

Ambient temperature: -40°C to +60°C

Oil temperature: -15°C to +80°C

Material: galvanized steel
