Distributor 80l joystick 2p set 2 sec to turn

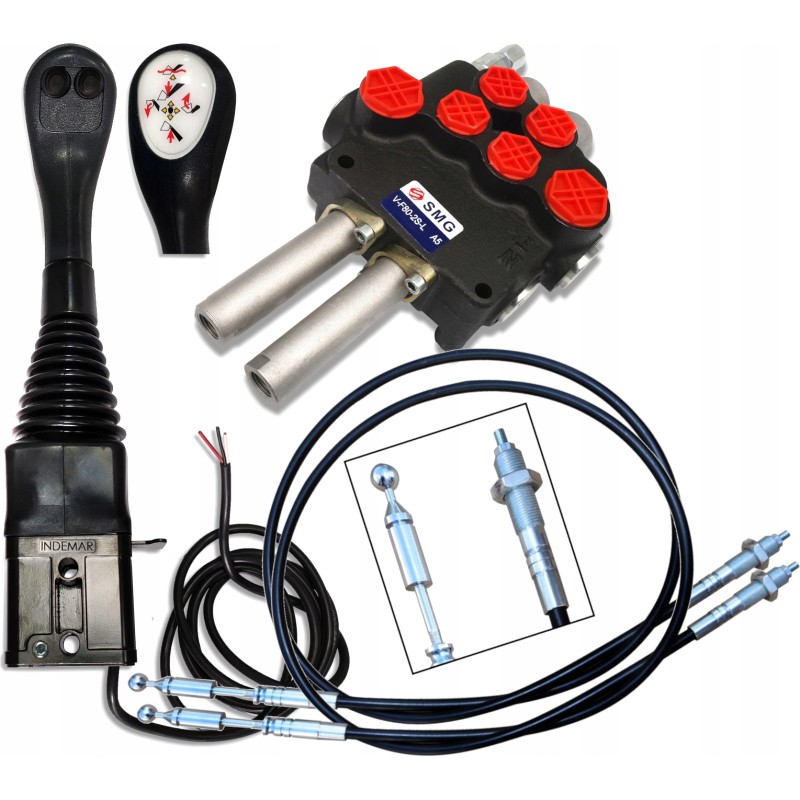

2-section hydraulic set 80L/min for TURAKOD SKRAW MET: [8514] Manufacturer: SM-G (SKRAW MET GROUP) Set: ball joystick with 2 buttons [0172]

2x cable, length 1 .5m [0202]

hydraulic distributor for cables, 2 sections, 80L/min [1603]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket tilt).

The set has many advantages that influence dynamic, fast and safe control of the machine.

It can be used in agriculture, horticulture, forestry and construction. It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

2-SECTION HYDRAULIC DISTRIBUTOR 80L ON LINKS Manufacturer: SM -G (SKRAW MET GROUP) A high-quality, monoblock distributor characterized by a compact structure, stable operation and high versatility.

It enables the control of two double-acting or (after plugging one of the ports) single-acting actuators.

It is possible to connect in series to the existing system (pressure sleeve required).

Control from the cab using cables and joystick.

Application: The distributor is perfect for powered machines and devices hydraulically.

It can be used in agriculture, horticulture, forestry and construction.

Universal distributor, used in various types of machines such as: Cyclops

Tury

Loaders

Plows

Forklifts and many others

Three-position slider (1 - 0 - 2) on a spring returns to the vertical position itself

Neutral position 0 (joystick set vertically - cable is slack) actuator piston rod is standing - oil goes to the overflow.

Working position 1 (joystick set diagonally forward) actuator piston rod extends .

Working position 2 (joystick set obliquely to the rear), the actuator piston rod retracts.

Connection: Power supply (P) BSP 3/4''

Return (T) BSP 3/4''

Output to sections BSP 1/2''

Connection BSP 3/4'

Technical specifications: Oil flow: 0 - 80 l/min

Maximum working pressure: 250 bar

Permissible ambient temperature: -40℃ to +60℃

Permissible oil temperature : -15℃ to +80℃

Equipped with a safety valve.

JOYSTICK WITH 2 BUTTONS Designed for mechanical control of frame lifting, shovel inclination and bale grabber or crocodile + additional fourth section.< p>

A solid joystick enabling mechanical control of the four-way hydraulic control valves of TURA (loader) using two cables and two buttons.

It allows for remote control (from the cab) of distributors that are located outside the cab.

Application: Dedicated to control TURA 1, 2, 3 in tractors such as:

URSUS

ZETOR

MF and derivatives.

It is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in various types of machines, i.e. agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, industrial machines and others.

Easy to install. Technical specifications: Operating temperature: from -30 °C / up to +80°C

Cable opening Φ14 mm

Lock lever

M8 self-locking pin for cable mounting

Material :ergonomic, hardened plastic handle

Aluminum alloy base

The joystick has a safety mechanism (2) that allows you to lock the joystick head movements to prevent accidental activation:Locked joystick headUnlocked joystick headCable for controlling a 1.5 m ball distributor POLISH product SUPER DURABLE The cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick / lever.

It can be used in agriculture, horticulture, forestry, construction and the broadly understood industry .

Ends: The end of the cable on the joystick side ended with a ball with a diameter of 14mm

The end of the cable on the distributor side, cable body thread M16x1.5, slider thread M6x1.6
