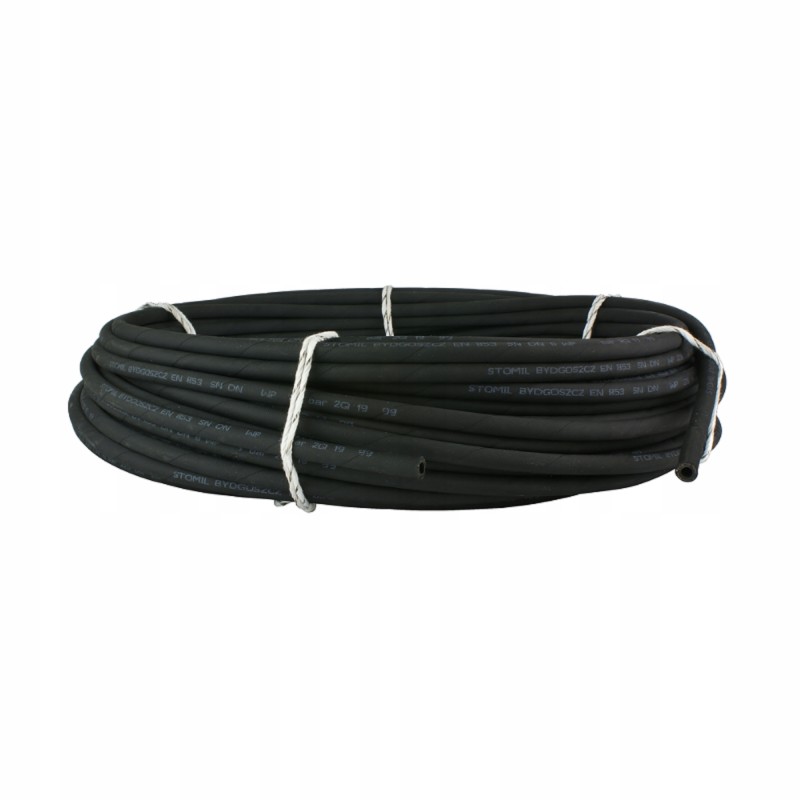

Reinforced hydraulic hose 2sn dn19 215bar stomil

HYDRAULIC HOSE STOMIL BYD. DN19 2SN 215bar 3/4 INCH 1 PIECE = 1 METER Production: Original product of the Stomil Bydgoszcz brand, symbol: 4.01.02.019

Application:

Hose used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed for hydraulic systems with a maximum flow of up to 180L/min and a pressure of up to 215bar. The hose fits all fittings and sleeves from the DN19 (20) group, which have the symbol 2SN in their symbol.

.

Technical data:

Inner layer: synthetic rubber, with a smooth surface without joints and uniform thickness.

Outer layer: resistant synthetic rubber for oils, fuels and difficult weather conditions.

Inner reinforcing layer: double steel cross braid.

Operating temperature range of all layers: -40°C to 100°C

Recommended nominal operating pressure max. 215bar.

Test pressure is twice as high as the nominal pressure.

Burst pressure is four times higher than the nominal pressure

Inner diameter of the passage: 19mm

Outer diameter: 30mm

Production: Polish Stomil Bydgoszcz
