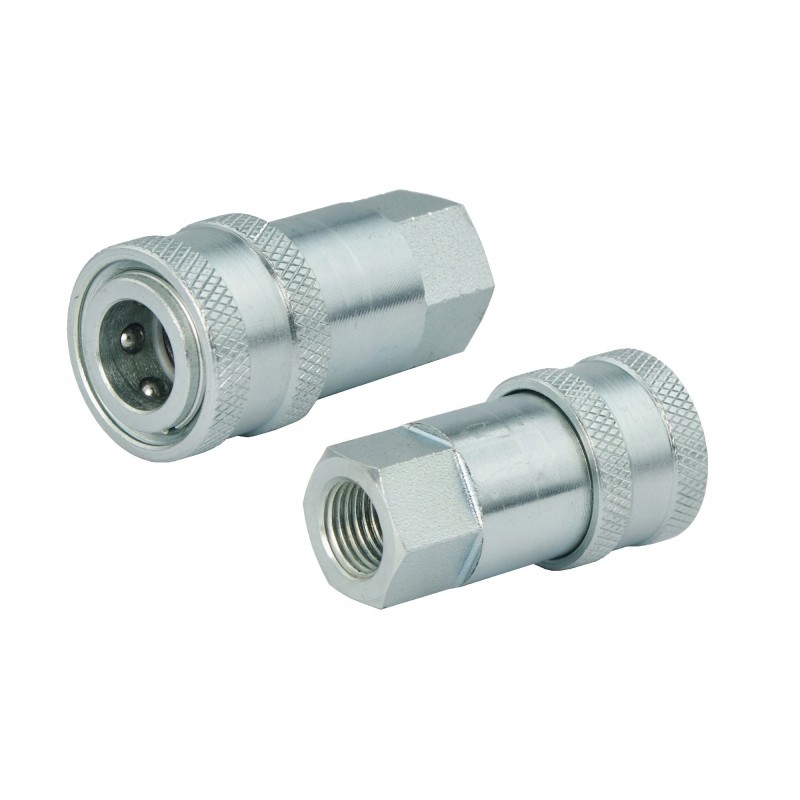

Hydraulic quick connector, euro socket, internal thread 1 4

HYDRAULIC QUICK CONNECTOR MINI EURO TYPE INTERNAL THREAD 1/4' Production:

Original product of the Hydrolider brand, symbol: 1.60.55.036

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks and dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

BSP 1/4' thread diameter measured with a caliper:

Outer diameter [mm]: 12.9 - 13.1

Inner diameter [mm]: 11.4 - 11.9

Technical data:

Thread on the cable side: inch BSP 1/4'

Thread type: internal

Quick connector type: mini euro socket ISO standard

Material : galvanized steel

Weight: 0.10kg

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
