Hydraulic tee connector m20x1 5 12s with nut
  • Hydraulic tee connector m20x1 5 12s with nut
  • Hydraulic tee connector m20x1 5 12s with nut

Hydraulic tee connector m20x1 5 12s with nut

15010420676183
£16.40
Quantity
5 Items

Description

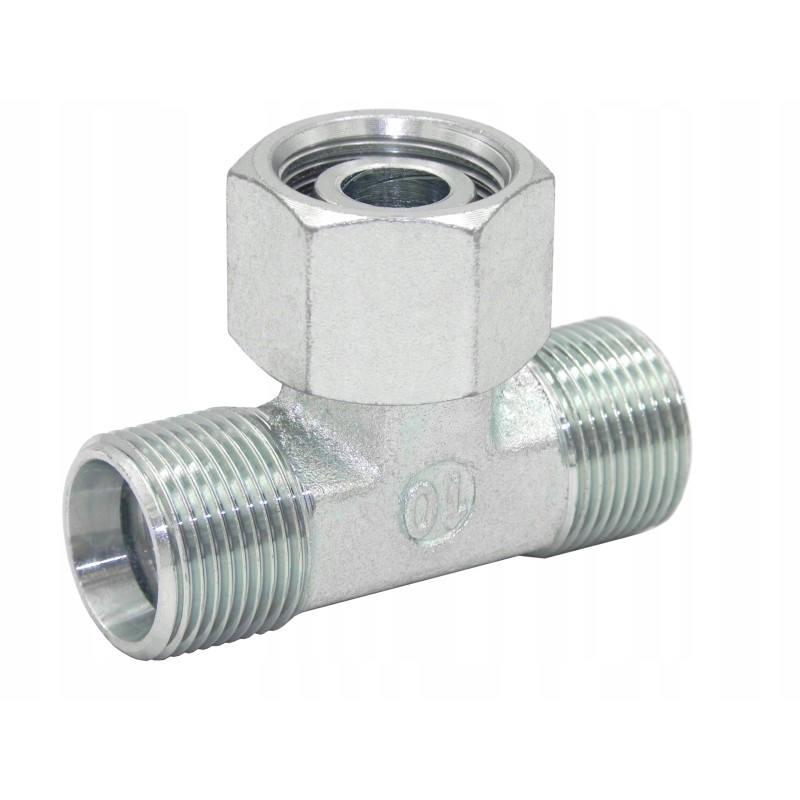

HYDRAULIC TEE CONNECTOR 3x M20x1.5 12S WITH NUT Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

T-connector, standardized light version with conical clamping self-seal when tightening. Designed to connect three hydraulic hoses or to connect with other connectors with the same cone system.

Technical data:

Thread on two opposite sides: external metric 20x1.5 12S - heavy standard

Foot thread: internal metric 20x1.5 12S - heavy standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Type liquid: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of hydraulics force. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010420676183
TN M20 12S
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
TN M20 12S
