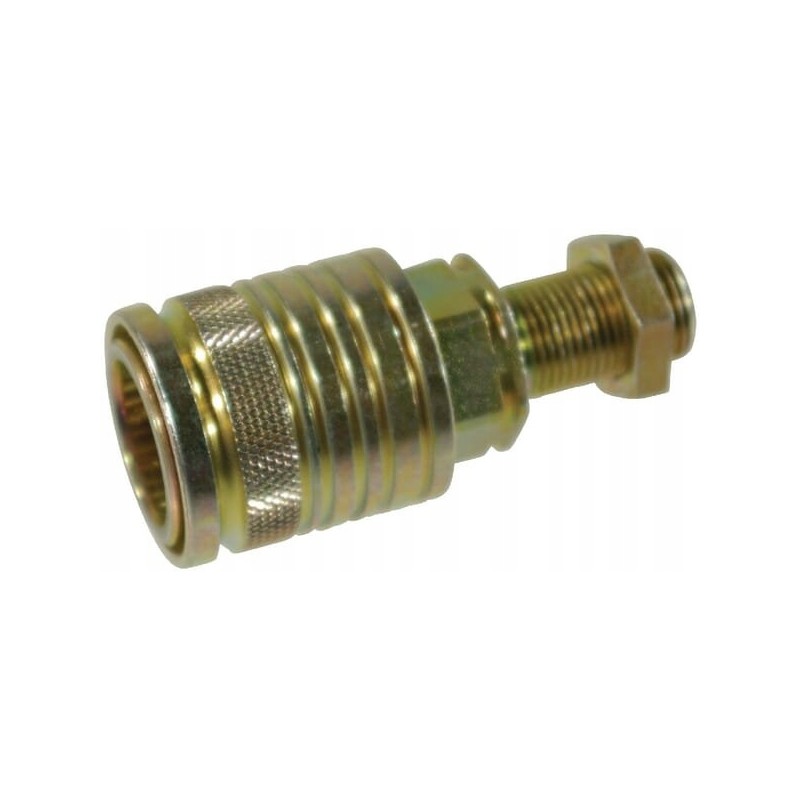

Quick connector socket skp f 1 2 bulkhead thread m18

Quick connector socket SKP-F 1/2' bulkhead thread M18x1.5 12L Parameters

Part number: SKPF12N18

Unit: piece

Manufacturer: DNP

Shape: Straight - 2 sides of connection

Size (code): BG 3

Connector type: Quick connector

Connector type - male/female: Female

Connection diameter: 20.6 mm

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 12 mm

Connector No. 2 Thread Diameter: M18

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type 2: Metric

Possibility to connect under pressure: No

ISO standard: 7241-1-A

Outer diameter: 38 mm

Total length: 85 mm

Material: Steel

Surface treatment: White passivated

Working pressure: 250 BAR

Operating temperature max.: 100 °C

Operating temperature min.: -30 °C

Application

- Universal use

- Agricultural machinery

- Municipal technology

- Mineral oil based fluids Properties

- Standard agricultural connector

- Push & Pull principle

- Tear-off function

- With cut-off on both sides - Axial actuation of the locking sleeve in both directions (double acting)

Seal material

- Nitrile rubber [NBR]

- Teflon (PTFE)
