Electric motor 0 25 kW, hmrv 50 1 30 gear

15013998003525
Hydrolider
£313.28
Quantity
5 Items

Description

< p>

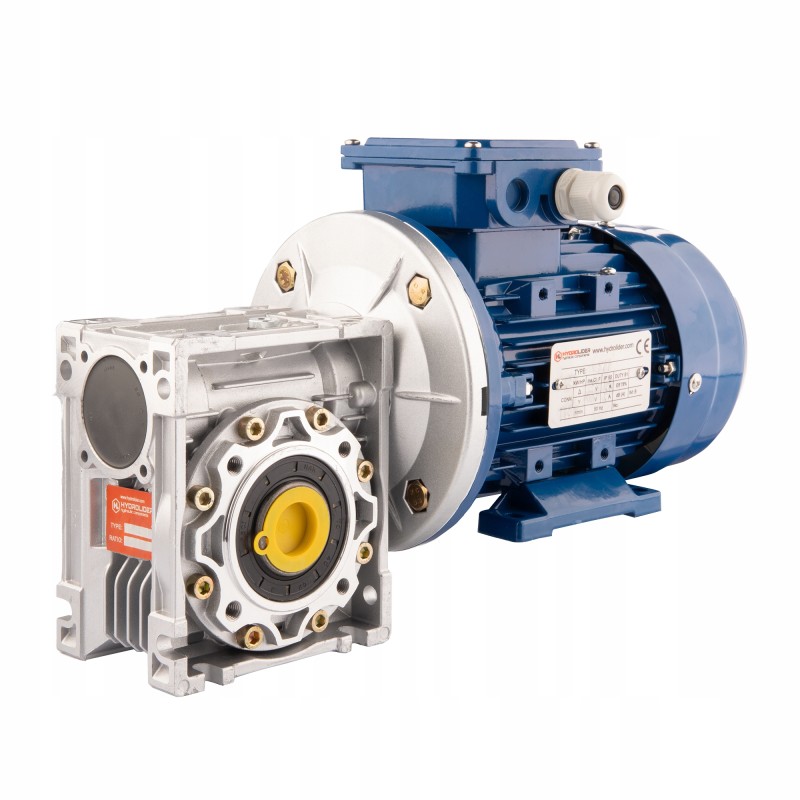

ELECTRIC MOTOR B35 3-PHASE 380V 0.25kW IEC71 WITH WORM GEAR HMRV 50 1:30 IEC71Production:

Original product of the Hydrolider brand, symbol: 1.42.35.5013071.025

Application:

Used in various types of industrial, agricultural and forestry machines, including to drive woodworking machines, pressure washers, belt conveyors, augers, elevators and others.

Technical data:

Motor type: B35 0.25kW IEC71

Current (A): 0.84

Voltage (V): 400 (380)

Motor shaft rotation speed (orb/min): 1350

Rotation direction: right or left

Sealing: IP55 on both sides

Housing: aluminum

Winding: copper

Gear type: HMRV 50 IEC71

Gear ratio (speed reduction): 1:30

Output shaft: through-hole

Inner diameter output shaft: 25 mm

Output speed (after reduction): 45 rpm

Output power (after reduction): 0.25 kW

Output torque (after reduction): 36 Nm

Product Details
Hydrolider
15013998003525
A1.42.35.5013071.025
5 Items
New

Data sheet

Manufacturer
Hydrolider
Part Number
A1.42.35.5013071.025
