3-way hydraulic ball valve 3 2 m14x1 5
  • 3-way hydraulic ball valve 3 2 m14x1 5
  • 3-way hydraulic ball valve 3 2 m14x1 5
  • 3-way hydraulic ball valve 3 2 m14x1 5
  • 3-way hydraulic ball valve 3 2 m14x1 5
  • 3-way hydraulic ball valve 3 2 m14x1 5

3-way hydraulic ball valve 3 2 m14x1 5

15013072946992
Waryński
£62.33
Quantity
5 Items

Description

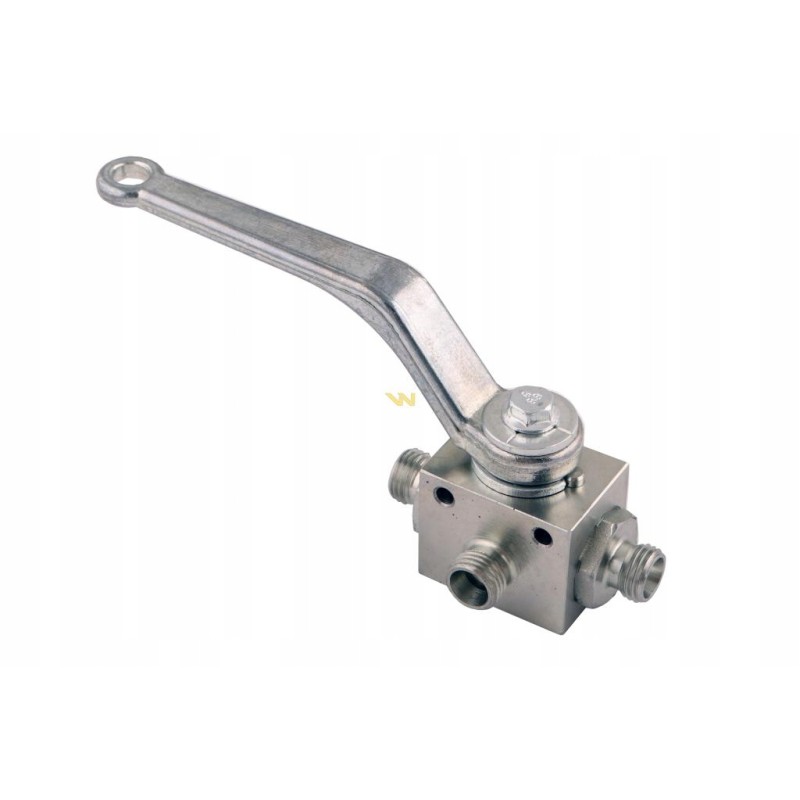

3-way hydraulic ball valve 3/2 M14x1.5 08L with mounting holes 500 bar Waryński3-way hydraulic ball valve 3/2 M14x1.5 08L with mounting holes 500 bar Waryński. The purpose of these types of valves is to switch the oil flow between two alternative outputs in the hydraulic system. They are designed in accordance with dimensional and quality requirements, which specify in detail the operating characteristics and dimensions. Thanks to their strong construction, they are suitable for use in difficult operating conditions in agricultural and construction machines.

Thread: External M14x1.5

Collective packaging: 1 pc

Type: 3-way ball valve 3/2

Cone - thread: 08L (8mm)

Max. operating pressure: 50.0 Mpa / 500 bar

Operating temperature: from -20°C to +100°C

Spacing of mounting holes: 26 mm

Material: Steel (body)

Product Details
Waryński
15013072946992
WKH3-08L-M14X1.5
5 Items
New

Data sheet

Manufacturer
Waryński
Part Number
WKH3-08L-M14X1.5
Product weight with unit packaging
0.4 kg
