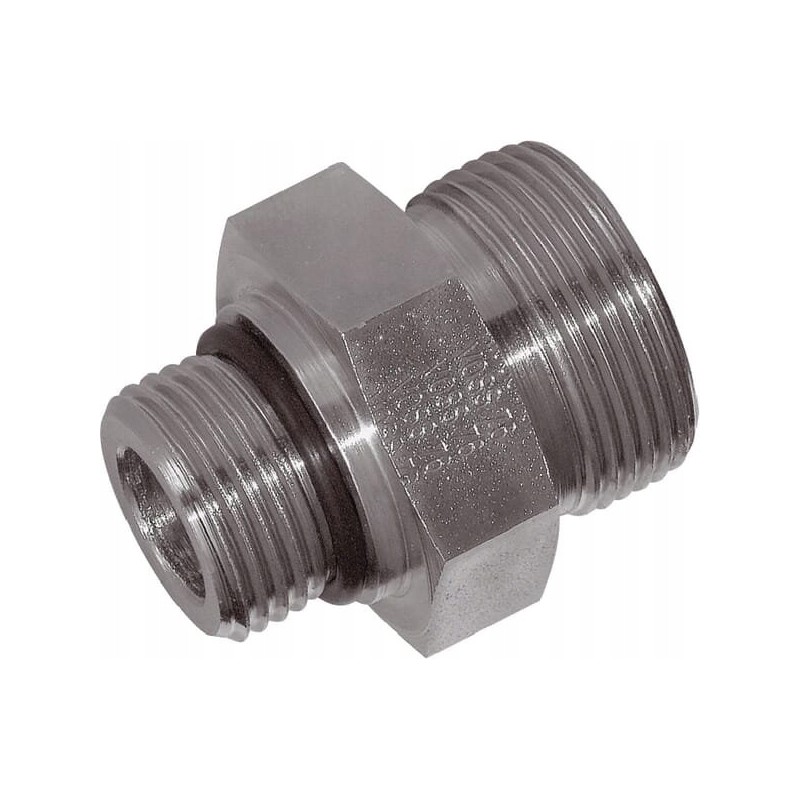

Screw-in connector 10l 7 16 unf

Screw-in connector 10L 7/16 UNF Parameters

Part number: GES10L716UNF

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connector diameter No. 1: 10 mm

Thread diameter of connector No. 1: 7/16 inch

Thread length of connector No. 1 [K]: 9.2 mm

Internal diameter: 5 mm

Working pressure max.: 500 BAR

Thread pitch of connector No. 1: 1.5 mm

Inner diameter sealing ring: 8.92 mm

Sealing washer thickness: 1.83 mm

Seal material: Nitrile rubber [NBR]

Series: L

Max tightening torque: 25 N m

Connector no. 1 key size: 15.8 mm

Wrench size for Connector No. 1 [S1]: 17 mm

Connector No. 1 Thread Type: UNF

Connector No. 2 Type: Seal Ring

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Thread Diameter: 7/16 inch

Number of turns per inch of thread for connector No. 2: 20

Thread type for connector No. 2: UNF

Wrench size for connector No. 2 [S2]: 19 mm

Pipe diameter: 10 mm

SAE standard: 514

Length: 28 mm

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Surface treatment

- Zinc

- Nickel plated

Dimension from the axis of the joint to the end of the next joint [L2]

27mm

Dimension from the axis of joint no. 2 to the end of the next joint [L1]

12mm

DIN standard

- 2353

- 3852

- 2401
