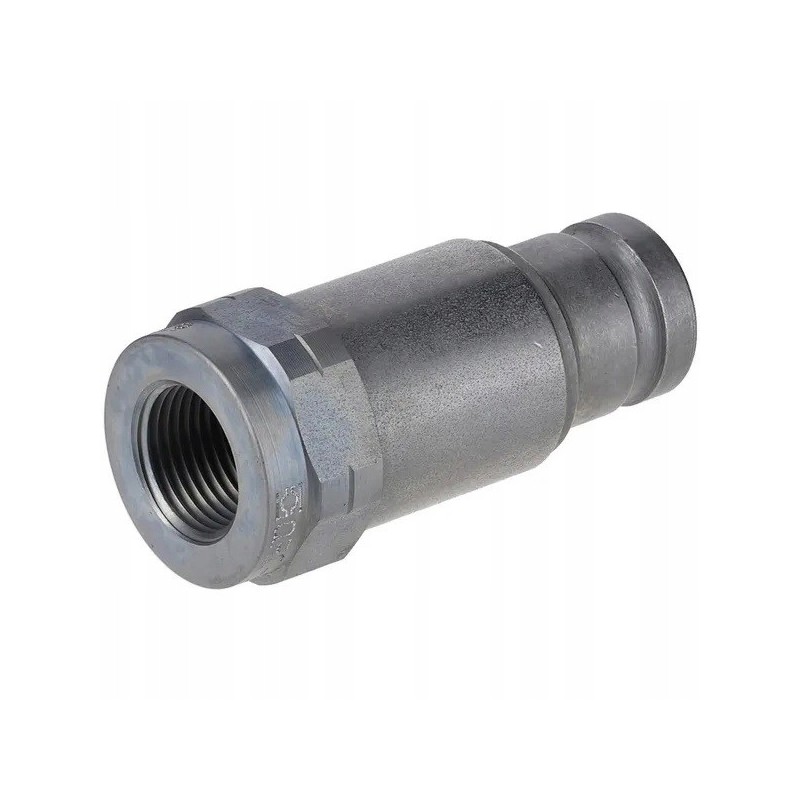

Skv flat quick connector m plug 3 8 thread

Specifications

One-handed connection

With special flat valve Application

Construction and agricultural machinery

Hydraulic tools

Can be used in ecologically sensitive areas Mineral oil based fluids Properties

With cut-off on both sides Highest corrosion resistance

Benefits

Easy to use

Minimum degree of leakage Joining without air inclusions Shape Straight - 2 sides of connection Size (code) BG 2 Size 3/8 inch Connector type No. 1 Quick connector Connector type No. 1 - male/female Male ØD1 Connection diameter 19.7 mm Connector type No. 2 Thread Connector type No. 2 - male/female Female Thread diameter of connection No. 2 3/8 inch Number of turns per inch of thread of connection No. 2 19 Thread type of connection No. 2 BSP Possibility of connection under pressure No Standard ISO 16028 Flow at pressure 2 bar 50 l/min ØDOuter diameter 32 mm L1 Total length 63 mm Material Steel Surface treatment

Zinc

Nickel plated

Operating temperature max. 100 °C Operating temperature min. -30 °C Seal material

Nitrile rubber [NBR]

Teflon (PTFE)

Connection type plug Internal thread type
