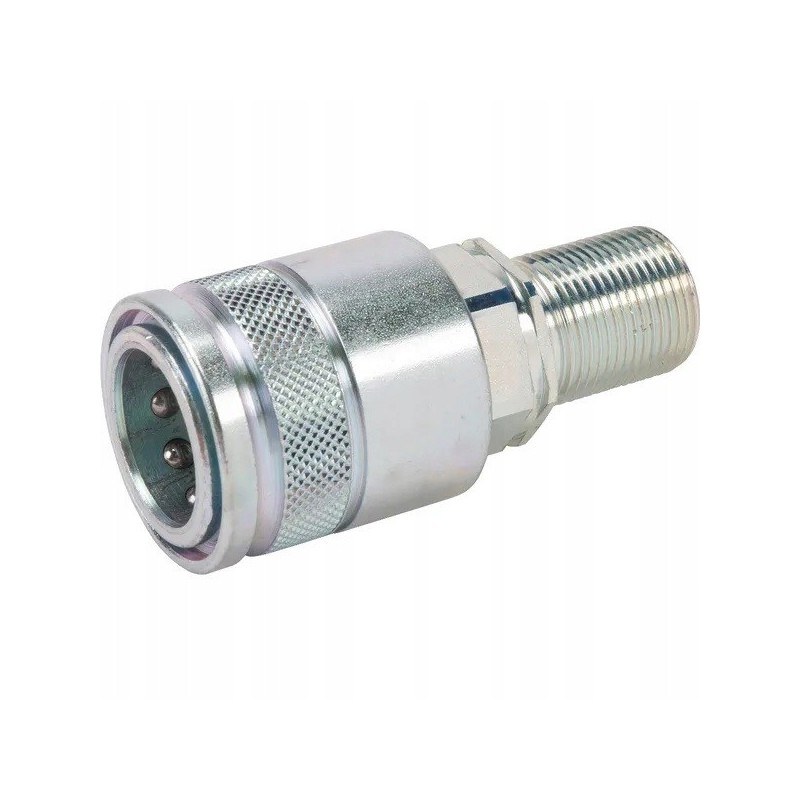

Quick connector socket skp f thread panel connection

Application

Universal use

Agricultural machinery

Municipal technology

Mineral oil based fluids Properties

Standard agricultural connector

Push & Pull principle

Tear-off function

With cut-off on both sides Axial actuation of the locking sleeve in both directions (double acting). Shape Straight - 2 sides of the connection Size (code) BG 3 Connector type No. 1 Quick connector Connector type No. 1 - male/female Male Connection diameter 38 mm Connector type No. 2 Thread Connection diameter No. 2 15 mm Connector thread diameter No. 2 M22 Connector thread pitch No. 2 1.50 mm Connection thread type No. 2 Metric Possibility to connect under pressure No Surface treatment White passivated Operating temperature max. 100 °C Operating temperature min. -30 °C Seal material

Nitrile rubber [NBR]

Teflon (PTFE)
