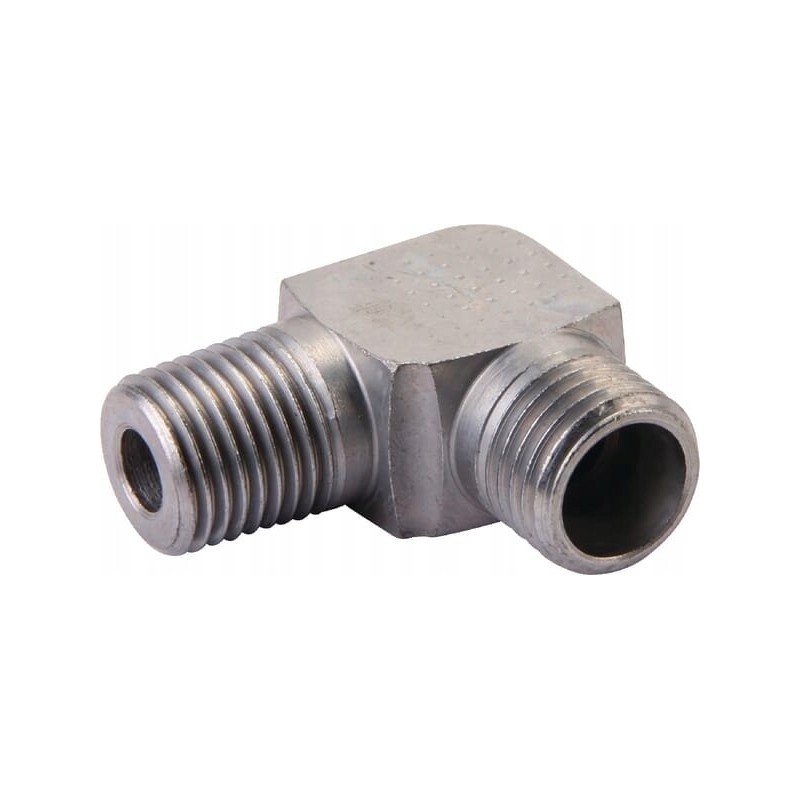

Angle threaded connector 10l r3 8

Angle threaded fitting 10L R3/8 Parameters

Part number: WES10LRK38

Unit: Piece

Manufacturer: Voss

EAN: 8716106788491

Shape: Elbow - 2 sides connector

Connector thread diameter: 3/8 inch

Connector thread length: 15 mm

Connector thread type: BSP

Wrench size for Connector No. 1: 19.0 mm

Connector No. 2 Type - Male/Female: Female

Connection No. 2 Diameter: 10 mm

Connector No. 2 Thread Diameter: M16

Connector No. 2 Thread Pitch: 1.50 mm

Connector No. 2 Thread Type: Metric

Wrench size for connector no. 2: 19.0 mm

Pipe diameter: 10 mm

ISO standard: 228

Inner diameter: 7 mm

Angle: 90 °

Max working pressure: 315 BAR

Series: L

Dimension from the axis of the joint to the end of the next joint 20mm

Dimension from the axis of joint no. 2 to the end of the next joint 16mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
