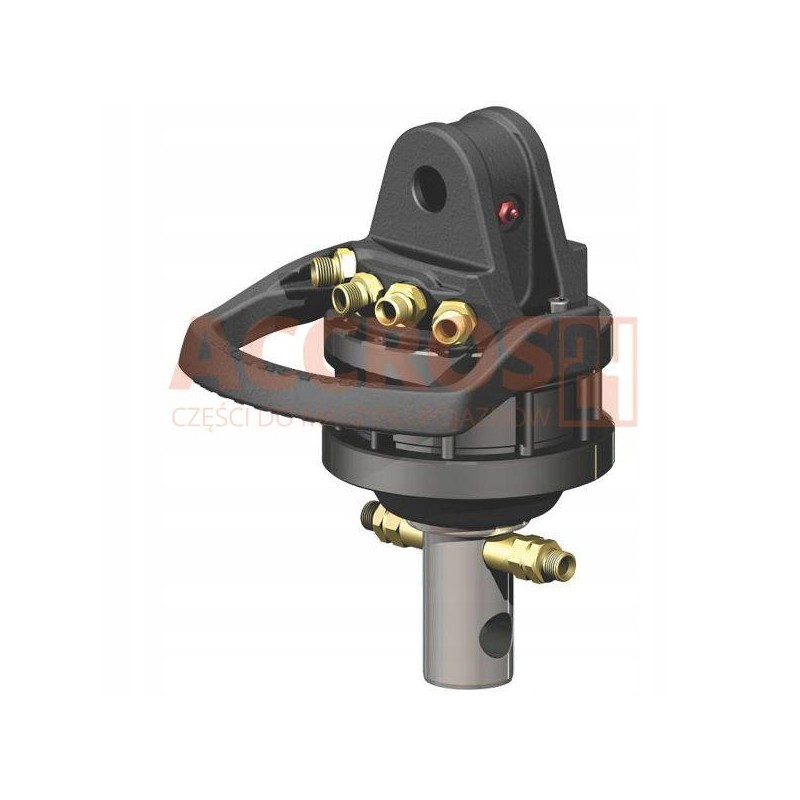

Hydraulic rotator gr30 hds turntable 3 tons

Name:

GR30 hydraulic rotator HDS 3ton turntable

Description:

Part number GR30

Specifications - Grapple Rotator

Benefits - Continuous rotation

Application - Suitable for adaptation to almost any crane - Commercial vehicles - Forest industry

Features - Axial load capacity from 1 to 16 tons - Useful standard rotator - Working principle of the diaphragm motor - 2 oil ports for lifting/lowering the gripper

Technical information - GR = Rotator Grapple for axial load only - GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial load and transverse

Unit Piece

Pressure (bar) Operating pressure in the rotating device: 250 bar, oil passages 200 to 300 bar.

Connection (Inch) G 3/8

Weight (kg) 18

Mounting (ground side) Axle 49.5 mm, hole 25 mm

Q (l/min) 20

Mounting Cam b=60 mm, bore 25 mm

Oil connection 4

Load limit (kN) 30

Torque (Nm) 720

Producer: Aparts
