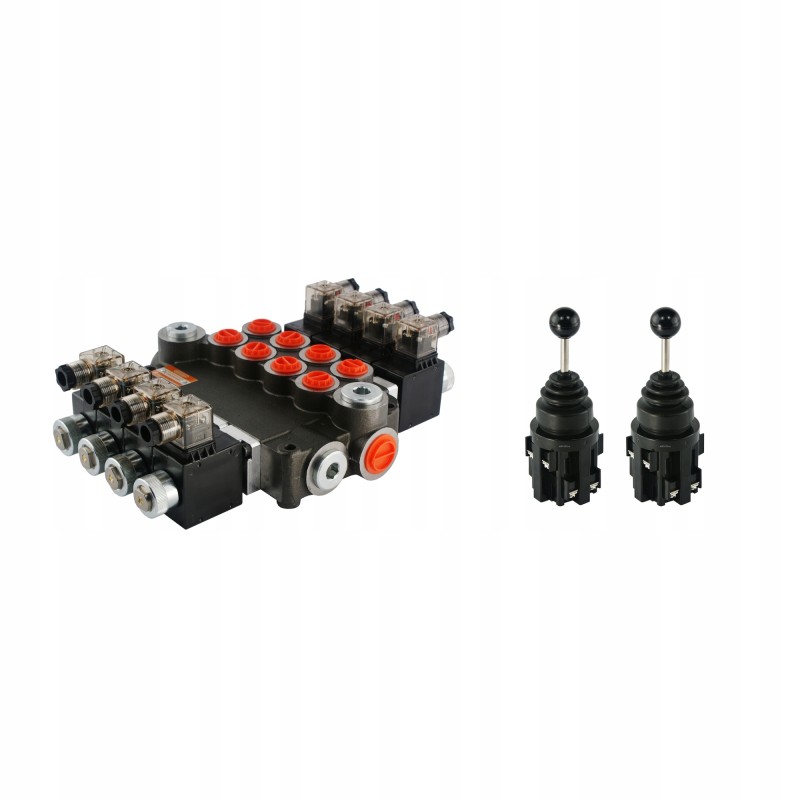

Hydr distributor 4z80 4xa1 24v 2xjoy badestnost

4-SECTION HYDRAULIC DISTRIBUTOR Z80, ELECTRICALLY CONTROLLED 24V, WITH JOYSTICKS AND PLUGS Manifold production:

Original product of the Badestnost Bulgaria brand, manufacturer's symbol: 04Z80 A ES3 24VDC G, symbol: 1.10.55.042.1

Joystick production:

Original product of the Hydrolider brand, symbol: 1.10.61.010

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and the broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others devices with a hydraulic system.

A joystick, or lever manipulator, allows you to control two sections in an electrically controlled hydraulic distributor.

Technical data:

The set includes a distributor, 8 plugs electrical and 2 joysticks.

Recommended oil flow in the system: 0 - 80 l/min.

Example control: four double-acting actuators.

Possibility to connect series to the existing system (pressure sleeve required).

Control:

All sliders are three-position (1 - 0 - 2), spring-loaded, i.e. they return to the neutral position on their own after cutting off the power supply . When the slider is in the neutral position (0), the oil flows freely through the distributor to the return channel, the pump then does not work on pressure and is relieved.

Principle of slider operation:

Position 0 neutral (power supply to both coils is cut off) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (power supply only to the first coil) the actuator piston rod extends.

Position 2 working (power supply only to the second coil), the actuator piston rod retracts.

On the right, a hydraulic diagram of the distributor:

Current:

Power supply direct current (DC) ) 24V

Electrical plugs have diodes that light up when current is applied to the coil.

Connection:

Power supply from the pump (P1, P2): BSP 1/2'' female thread

Return to tank (T1, T2): BSP 3/4'' female thread

Sections (A1, A2, A3, A4, B1 , B2, B3, B4): BSP 1/2'' internal thread

Series connection (N): BSP 3/4' internal thread

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on the sections: 300Bar

The opening pressure of the overflow valve increases proportionally with flow increase:

180 bar at 20 l/min

190 bar at 40 l/min

200 bar at 60 l/min

210 bar at 80 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

Oil types recommended by AGRICOLA:

Thinner, high-quality oil: LOTOS AGROL BOXOL 26

Thicker, high-quality oil quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: - 15 C to +80 C

GENERAL INFORMATION JOYSTICK: It has 4 unstable positions and one stable, neutral middle position. If the controller releases the joystick, it returns to the middle - neutral position. Designed for installation in a Ø 30 mm hole. Installation is done by unscrewing the lever ball, unscrewing the ring with cover, inserting the joystick through the hole and screwing the ring and ball back on. It has a rubber sealing cover that protects against dust, water and is resistant to oil.

EXAMPLE OF OPERATION WITH A DISTRIBUTOR:

Neutral position 1 (lever vertical), cylinder piston rods are stationary - oil goes to the overflow.

Working position 2 (lever in forward position), the piston rod of the first cylinder extends.

Working position 3 (lever in the backward position), the piston rod of the first cylinder retracts.

Working position 4 (lever to the left), the piston rod of the second cylinder extends.

Working position 5 (lever to the right), the piston rod of the second cylinder retracts.

PARAMETERS :

Dimensions: 51 × 55 × 146 mm

Lever material: Steel

Operation: Mono stable (without latch)

Number of working positions: 4

Contact sets: 4 x NO

AC contact load capacity: 6A / 250V (with resistive load)

DC contact load capacity: 2, 2A / 110V (with resistive load)

Insulation resistance min. : 100MΩ

Test voltage: 2.2kV

Mechanical durability: 5*1050 cycles

Electrical durability: 5*1050 cycles

TEMPERATURE RANGE

Operating temperature: -20....50°C
