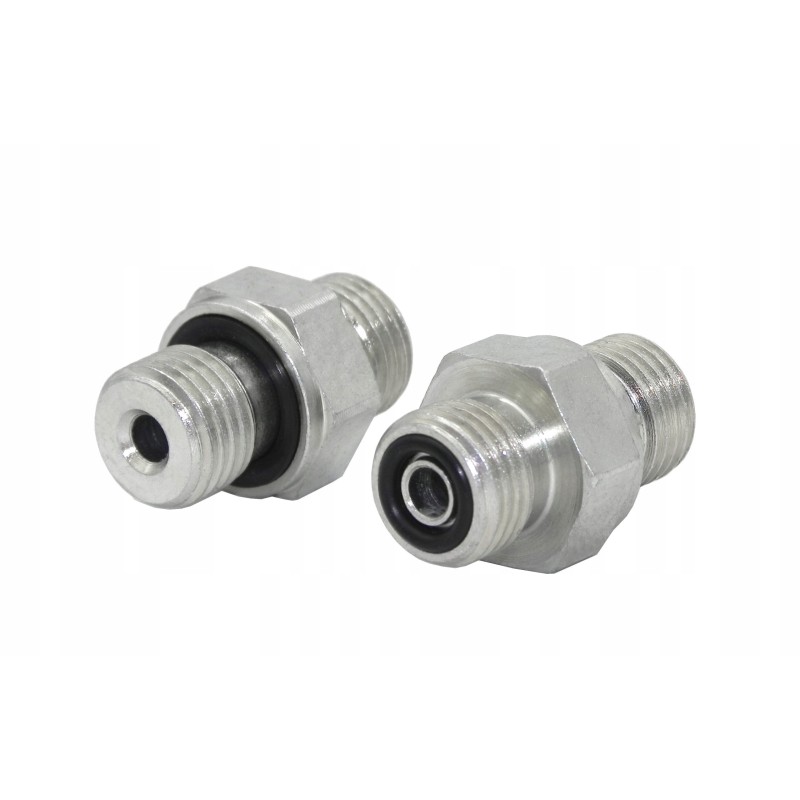

Hydraulic connection, nipple M14x1 5 orfs 9 16

HYDRAULIC CONNECTION M14x1.5 - ORFS 9/16''Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection with seal rubber, screwed into the body of e.g. a pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic lines.

The side intended for screwing into the body has an ED seal, no additional seals are required in this place.

The other side is intended for screwing on a pipe, elbow or other fitting. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is also not required here.

The connection is intended only for screwing into the body and is not suitable for connecting two wires. For this purpose, connectors are used, which can be purchased at our other auctions.

Technical data:

Thread on the body side: external metric 14x1.5

Thread on the other side sides: external inch ORFS 9/16''

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
