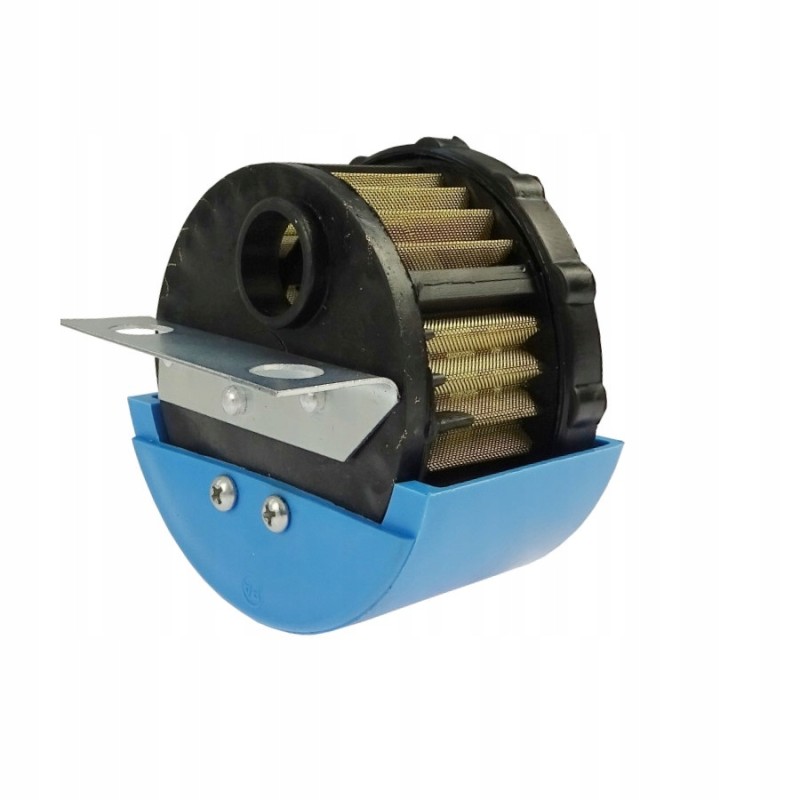

C 360 lift filter c 360 archimedes

C-360 Archimedes elevator filter

Comparative catalog number:

Complete filter of the C-360 ARCHIMEDES lift Technical data:

* Total diameter - 87 mm

* Diameter of the filter insert - 84 mm

* Total height - 71 mm

* Number of holes - 2

* Hole diameter - 11 mm

* Brass mesh of appropriate weight is used * The housing is made of polyamide, a material resistant to oil-based substances

* The spring used is made in accordance with the original Archimedes

documentation * The appropriate size and suction surface have been obtained - which guarantees proper oil flow and efficiency of the hydraulic system

Application:

* Ursus C-360 agricultural tractors

Catalog number:

- 4654651/A

Comparison numbers:

- 46546510

- 4654651/0

Product features:

* Highest quality

* 100% testing - each filter has its lid opening checked during installation * Producer Archimedes

* All filter elements were made in Poland * All components guarantee the purity of the sucked oil, which translates into long operation of the hydraulic system
