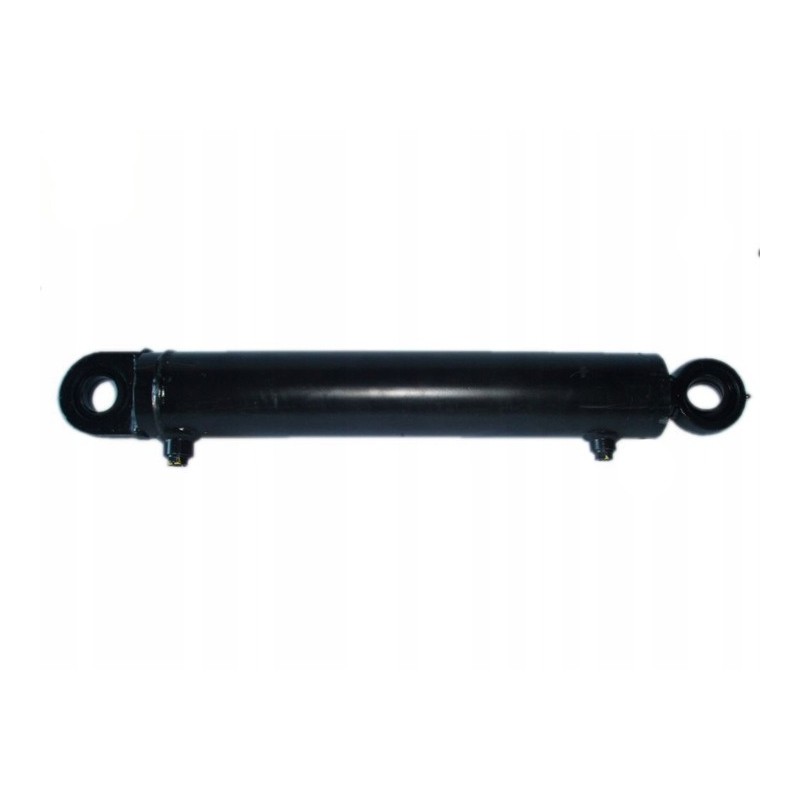

Auxiliary cylinder 89409909 ZTS Ursus

Auxiliary cylinder 89409909 ZTS C-385, SMT2CJ.63.36.300 WARYŃSKIC Hydraulic cylinder - double-sided auxiliary cylinder of the lift (SMT2CJ.63.36.300, 89409402) C-385 6-cyl. Waryński

Product code: 89409402.10

Manufacturer's code: W-SH2P36H300Z

Type: double-acting

Ears (hole): Ø25mm

Input 1: M18x1.5 internal thread

Input 2: M12x1.5 internal thread

Stroke: 300mm

Dimension after folded: 505mm

Dimension after unfolding: 805mm

Piston rod (rod): Ø36mm

Steel pipe. (outer dimension): Ø73mm

Pressure (range): 16-32 Mpa (160-320 bar)

Recommended working medium: according to PN-C-96057-04:1991 , ISO 6743/4, category HVLP/HV

Required filtering accuracy: ≤25µm

Operating temperature range: `-30°C to +80°C

Application:

Hydraulic cylinders (cylinders) are widely used in agriculture, industry and construction. Fits: C-385 6-cyl. The task of the hydraulic actuator is to convert the pressure energy of the working fluid into mechanical energy (sets the piston in a straight-line and reciprocal motion).
