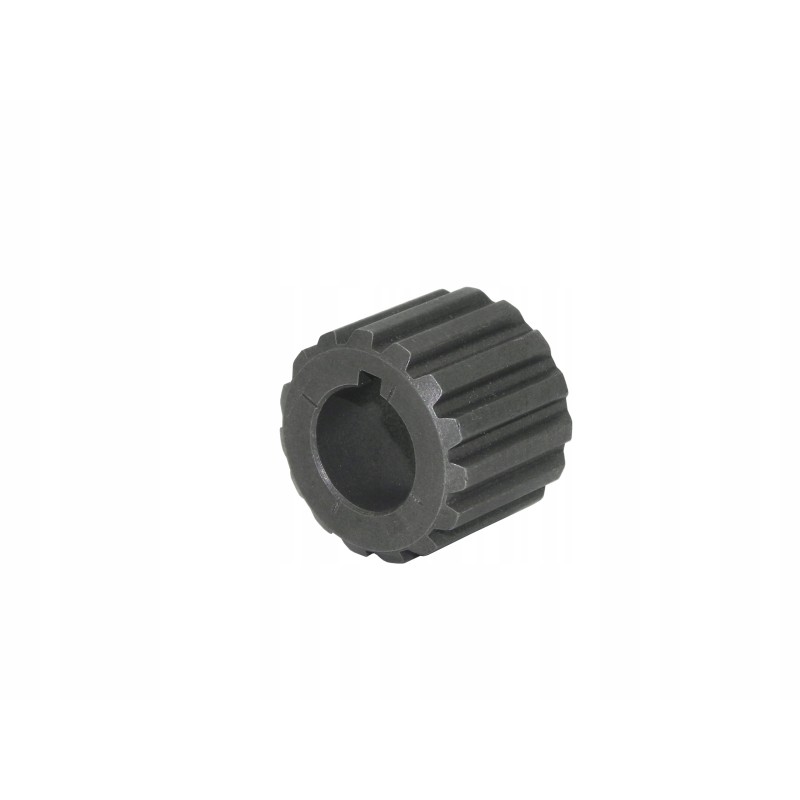

Support pump spline bushing z15 28mm 1 8

Splined sleeve PUMPS ATTACHMENTS SUPPORTS Z15 28mm 1:8 Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Splined sleeve for connecting the pump drive shaft with a driving element, e.g. a gear or a bearing support.

Technical data:

Length [mm]: 22.0

Outer diameter [mm]: 27.5

Spline: z15 x 25 x 28

Number of external cutters: 15

Cone: 1:8

Pump type: 2

B [mm] Inlet: 3.2

C [mm]: 9.7

D [mm] Internal diameter. 14.2

Pump type: Group 2

Standard: DIN 5482

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
