Corner angle ag ig 90 clew90mk10m10

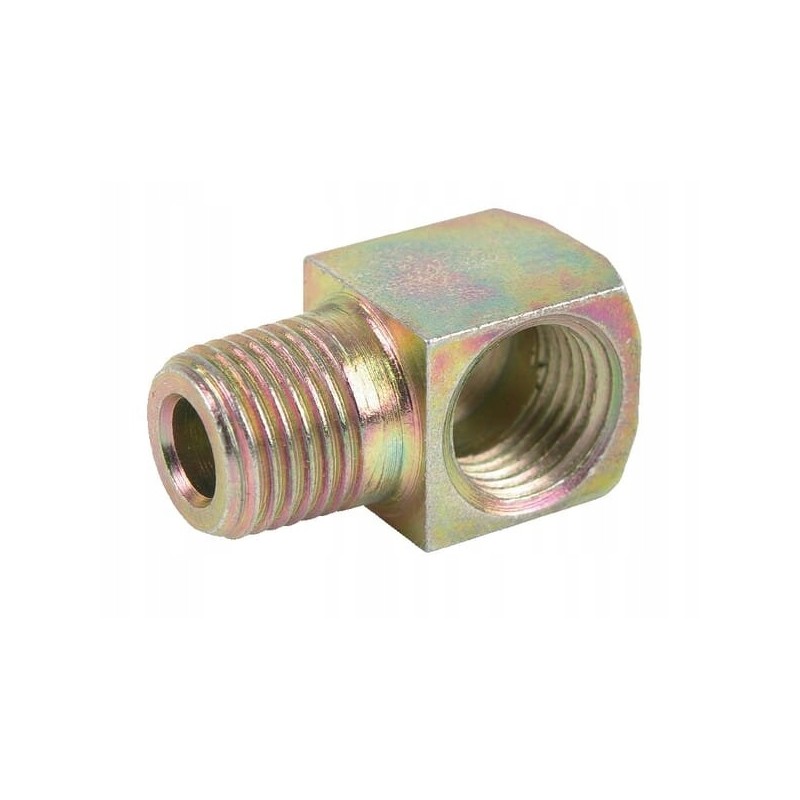

Corner angle AG-IG 90° Parameters

Part number: CLEW90MK10M10

Unit: piece

Manufacturer: Kramp

EAN: 5700036737523

Shape: Elbow - 2 sides of the connection

Type of connector no. 1: Thread

Thread diameter of connector no. 1 [A]: M10

Thread length of connector no. 1 [L ]: 6.5 mm

Connector No. 1 Thread Pitch [A]: 1 mm

Connector No. 1 Thread Type [A]: Metric

Wrench Size for Connector No. 1 [SW]: 12 mm

Connector No. 2 Type: Thread

Connector No. 2 thread diameter [B]: M10

Connector No. 2 thread length [L2]: 10 mm

Connector No. 2 thread pitch [B]: 1 mm

Connector No. 2 thread type [B]: Metric

Total length [H ]: 23 mm

Angle: 90 °

Application

- Central lubrication system for stationary and mobile applications
