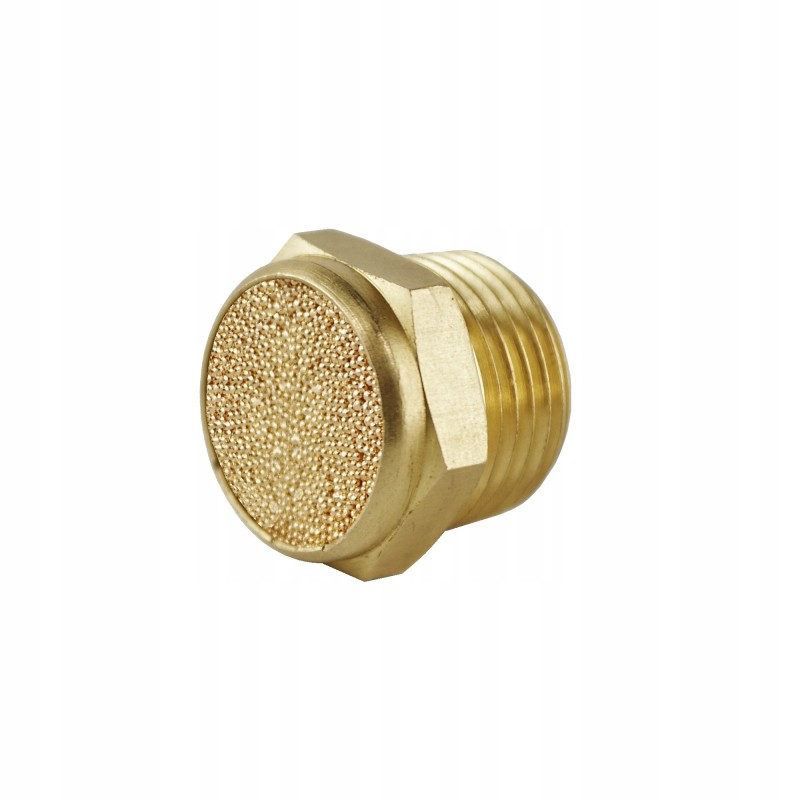

Flat mesh hydraulic vent, thread 3-4

MESH HYDRAULIC AIR VENT Production:

Original product of the Hydrolider brand, symbol: 1.34.75.057

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

General purpose air vent, in hydraulic systems for bleeding and aerating gears, tanks, actuators, etc.

Helpful data:

Thread diameter 3/4' measured with a caliper:

Outer diameter [mm]: 26.1 - 26.4

Inner diameter [mm]: 24.1 - 24.5

Technical data:

Type of construction: flat type, compact

Thread: external inch [BSP] 3/4'

Body material: steel

Maximum working pressure: 12 bar

Operating temperature: -20°C to +80°C
