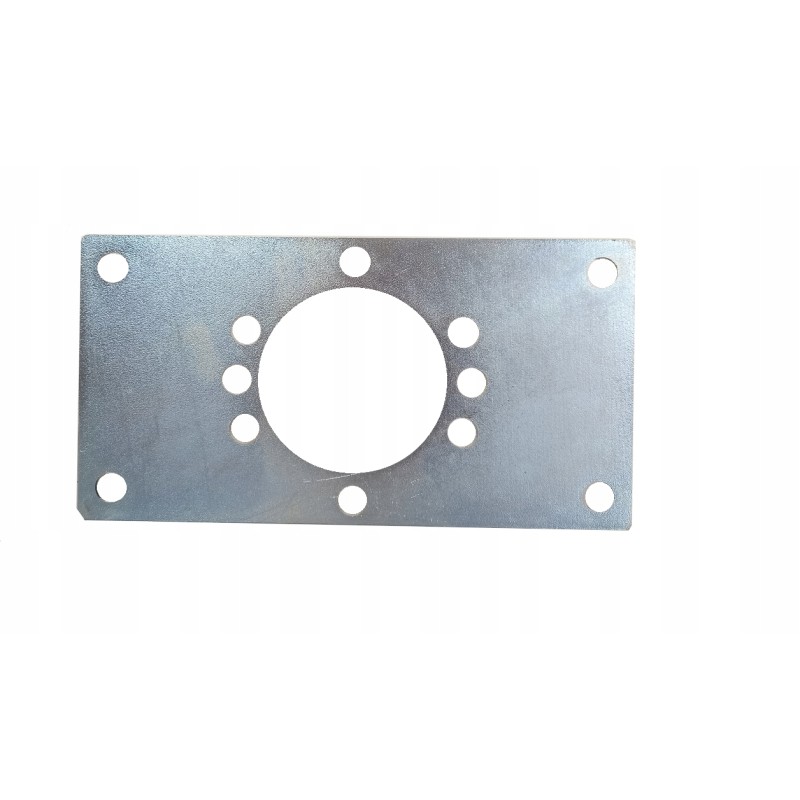

Bmr omr sms engine mounting plate

Universal weldable plate designed to be placed on the centering flange of a hydraulic motor with a diameter of 83 mm. min. type BMR, OMR, SMR, BMP, OMP, SMS, OMS and many others with a 25 mm shaft. and 32 mm.

The flange makes it much easier to attach the above engines to the structures in which they will be used. It allows the entire engine + flange assembly to be welded without any problems.

Technical data:

material: weldable steel

- dimensions: 250 mm. x 130 mm.

- diameter of the hole for the centering flange: 83 mm

- spacing of mounting holes on the engine: 104.6 mm.

- diameter of holes for screwing to the engine: 13.5 mm. (x8)

- diameter of mounting holes: 13 mm. (x4)

- thickness: 8 mm.
