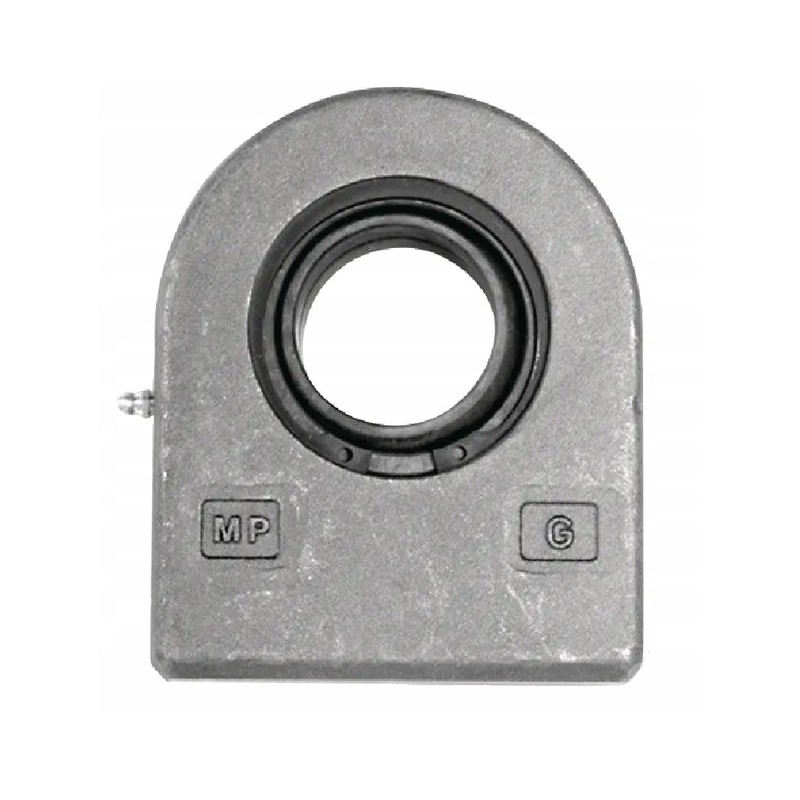

Gf25 for cylinder eye for welding oe 25

GF25DO Cylinder eye for welding ø 25EAN

8052461090191

Application

Hydraulic cylinder

Properties

Subject to mandatory maintenance

Rectangular welded flange

Massive design

Steel-steel sliding connection

d Hole diameter

25 mm

B Hole length

20 mm

D Diameter bearing outer diameter

42 mm

D1 Inner outer diameter

29.3 mm

ß Edge angle

7 °

D2 Total length

55 mm

H2 Distance from hole center to bottom

45 mm

dk Head outer diameter

55 mm

C1 Head width (hole length)

23 mm

L6 Total height

72.5 mm

Material

Forged steel

Application

for cyl end cap

Material

up to GF60DO forged ST52-3 steel, from GF60DO rolled ST52 steel -3

Standard

DIN 648
