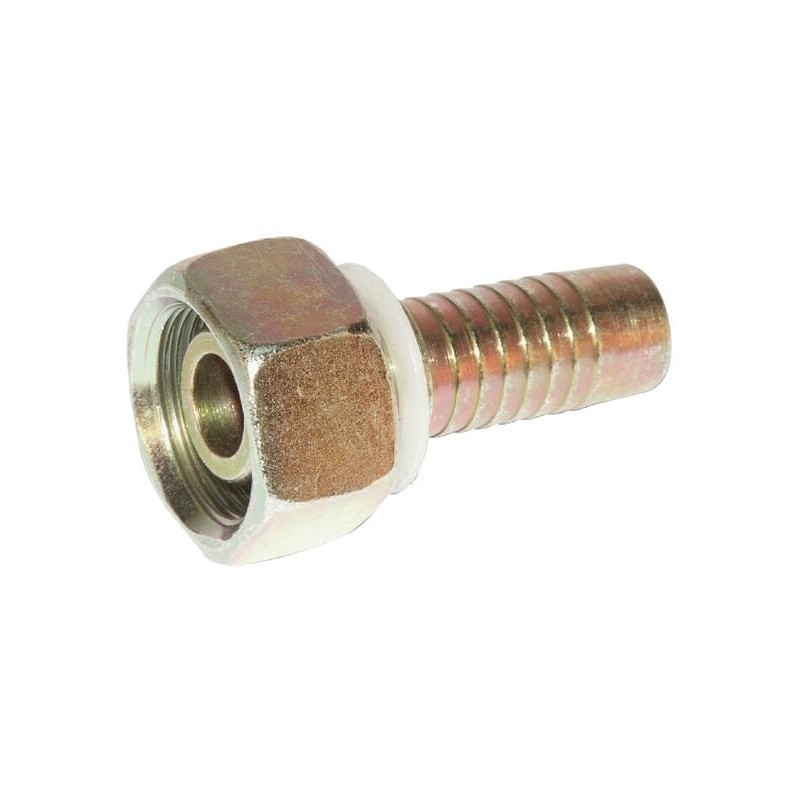

End cap dn08 m14x1 5 8l

Tip DN08-M14x1.5-8L Parameters

Part number: PGL814

Unit: Piece

Manufacturer: Alfagomma

Cone angle: 60 °

Shape: Straight - 2 sides of connection

Connector type no. 1: Thread

Connector type no. 1 - male/female: Female

Connector no. 1 type - code: DKM

Connector no. 1 thread diameter: M14

Connector no. 1 thread pitch: 1.50 mm

Wrench size for connector no. 1: 17.0 mm

Type of connector no. 2: Hose connector

Type of connector no. 2 - male/female: Male

Connection diameter no. 2: 8 mm

Material: Steel

Series: 8L

Connection: - Metric union nut

Type: DKM

Surface treatment

- Galvanized

- White passivated

Application

- Screw connections with metric thread and 24° cone or 60°
