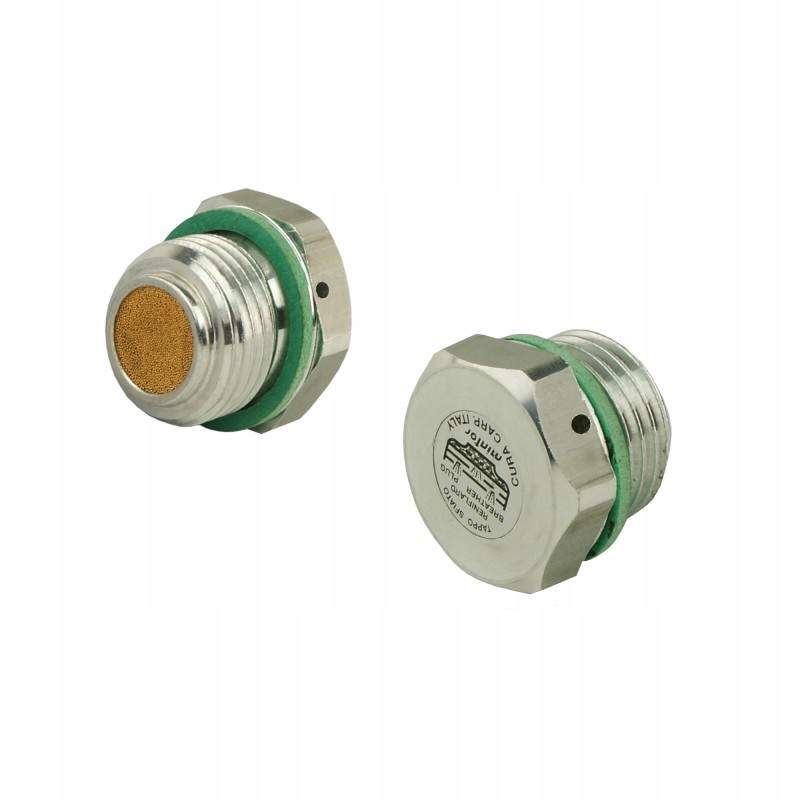

Tcfs gear mesh breather 1 2

COVERED MESH HYDRAULIC AIR VENT 1/2' Production:

Original Italian product of the Mintor brand, symbols: TCFS 3G, 1.34.75.077

Application:

It has a wide range of applications in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

General purpose air vent, in hydraulic systems for bleeding and aerating gears, tanks, actuators, etc.

Helpful data:

BSP thread diameter: 1/2' measured with a caliper

Outer diameter [mm]: 20.5 - 20.9

Inner diameter [mm]: 18.6 - 19

Technical data:

Type of construction: cork

Thread: external [BSP]: 1/2'

Body material: steel

Maximum working pressure: 12 bar

Operating temperature: -20°C to +80°C
