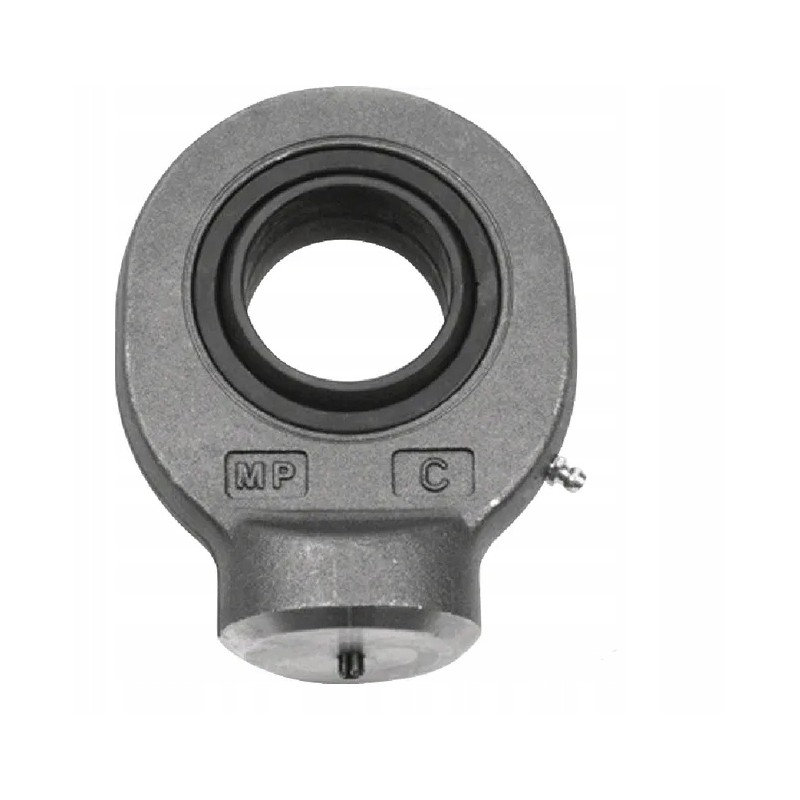

Gk35 for the cylinder eye for welding oe 35

GK35DO Cylinder eye for welding ø 35EAN

8052461090085

Application

Hydraulic cylinder

Properties

Subject to mandatory maintenance

Cylindrical welding tip

Centering pin with 45° welding edge at the end

Steel-steel sliding connection

d Hole diameter

35 mm

B Length bore

25 mm

D Bearing outer diameter

55 mm

D1 Inner outer diameter

39.7 mm

ß Edge angle

6 °

D7 Center pin diameter

4 mm

L7 Distance from shaft to center

42 mm

Shaft diameter

47 mm

H2 Distance from the center of the hole to the bottom

61 mm

Head outer diameter

82 mm

C1 Head width (hole length)

21 mm

Material

Forged steel

Application

Piston rod

Standard

DIN 648
