Pglo61245 tip dn06 m12x1 5 6l 45

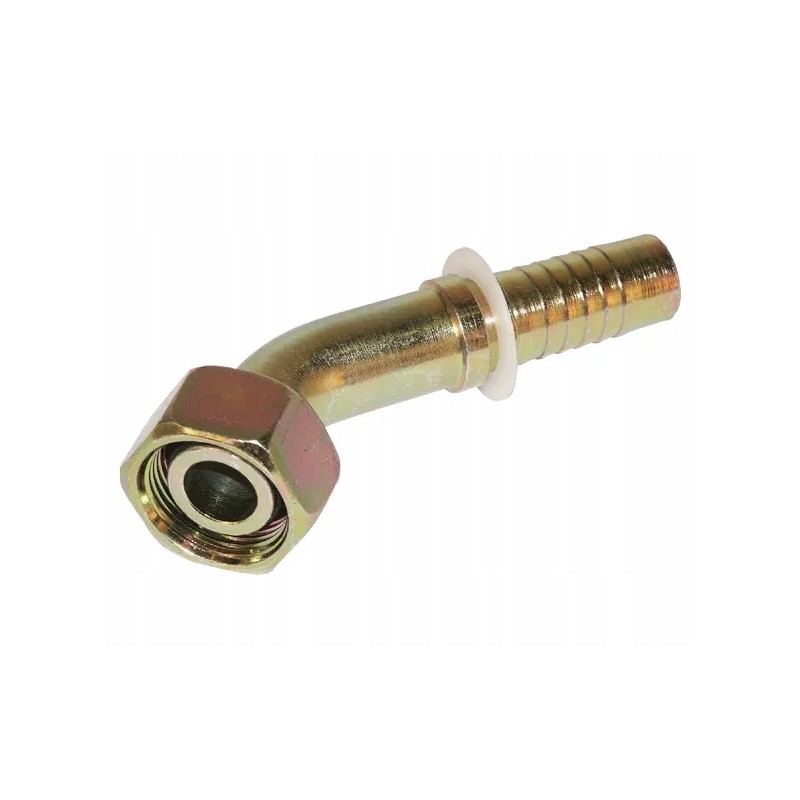

PGLO61245 Fitting DN06-M12x1.5-6L-45° Product Details

Cone, Cone Seal with O-ring

L Series Cutting Ring Connection

Includes

Fittings

O-ring Seal

Cone Angle

60 °

Shape

Elbow - 2 sides of the connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOL

Length of connector no. 1

40 mm

Thread diameter of connector no. 1

M12

Pitch Connector No. 1 Thread

1.50 mm

Connector Thread Type

Metric

Wrench Size for Connector No. 1

14.0 mm

Connector Type No. 2

Hose Adapter

Connector Type No. 2 - Male/Female

Male

Connection Diameter No. /4 inch

Diameter of joint no. 2

6 mm

Dimension from the center of joint no. 2 to the end of the next joint

15 mm

Angle

45 °

Material

Steel

Surface treatment

Zinc plated

White passivated

Series

6L

Reference number OE

H1221541-041200

Connection

xx

Type

DKOL
