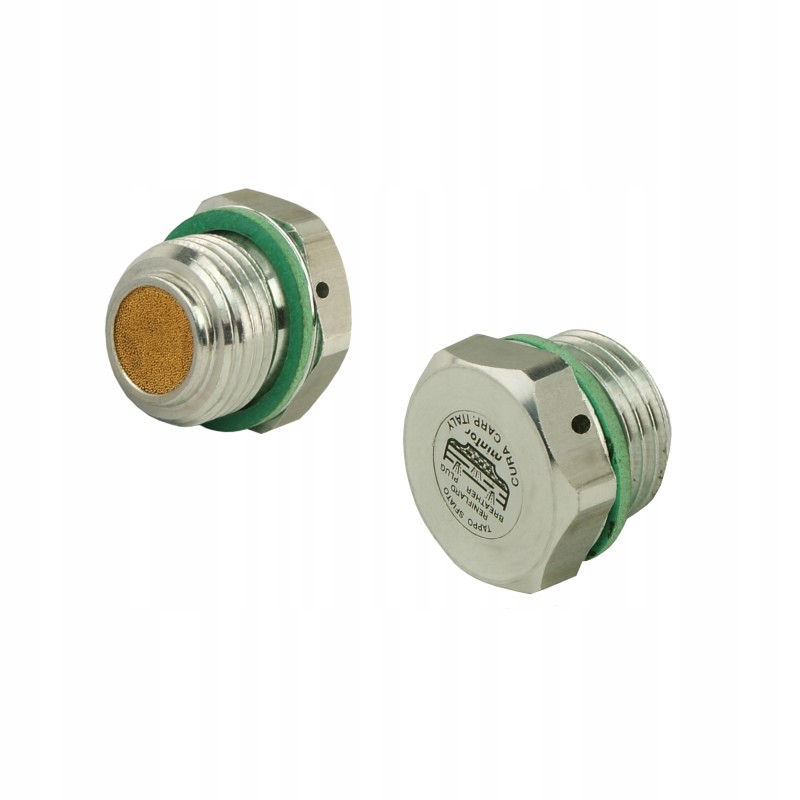

Tcfs mesh air vent for gw 3 8 actuator

COVERED MESH HYDRAULIC AIR VENT 3/8' Production:

Original Italian product of the Mintor brand, symbols: TCFS 2G, 1.34.75.076

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

General purpose air vent, in hydraulic systems for bleeding and aerating gears, tanks, actuators, etc.

Helpful data:

BSP thread diameter: 3/8' measured with a caliper

Outer diameter [mm]: 16.3 - 16.6

Inner diameter [mm]: 14.9 - 15.4

Technical data:

Type of construction: cork

Thread: external [BSP]: 3/8'

Body material: steel

Maximum working pressure: 12 bar

Operating temperature: -20°C to +80°C
