Pn1312 tip dn13 3 4 bsp

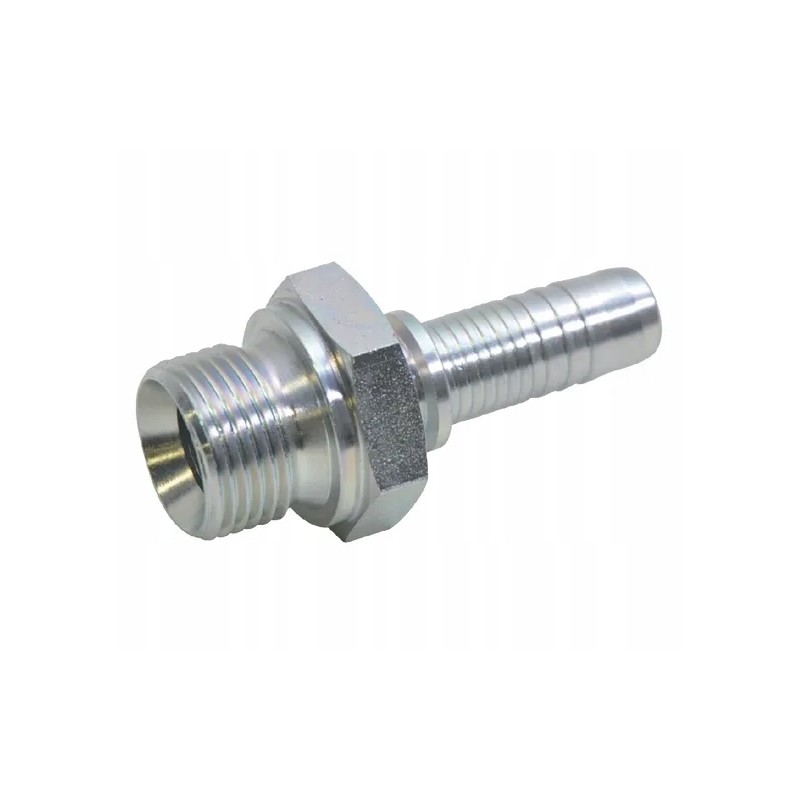

PN1312 DN13-3/4 BSP fittingProduct details

Metal to metal seal

Cone angle

60°

Shape

Straight - 2 sides connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Male

Connector type no. 1 - code

AGR

Length of connector no. 1

34.1 mm

Connector thread diameter

3/4 inch

Connector thread type

BSP

Wrench size for connector no. 1

32.0 mm

Connector type no. 2

Hose connector

Connector Type No.2 - Male/Female

Male

Connection Diameter No.2

1/2 inch

Connection Diameter No.2

13mm

ISO Standard

228

8434-6

Material

Steel

Surface Treatment

Zinc Plated

White Passivated

Connection

BSP external thread with 60° internal cone

Application

As a screw-in connector, e.g. for quick couplings

Type

AGR
