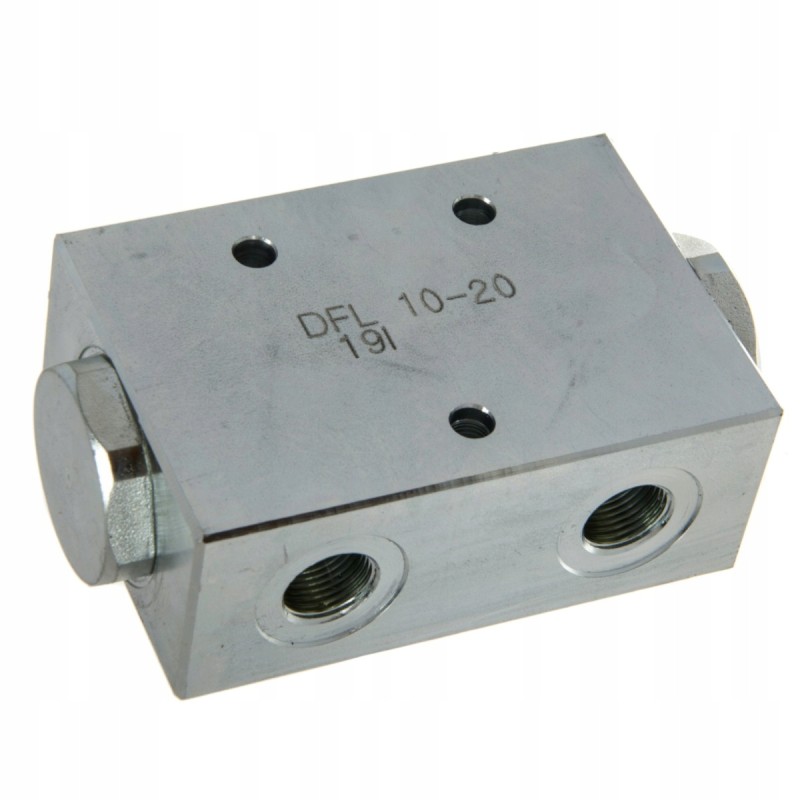

Oil flow divider 10 20l min 3 8 250bar

Oil flow divider 3/8' MTD-10-08 MIZAR number: 60694

Flow divider MTD-10-08 (24-12) Parameters:

Connections: 3/8'

Maximum pressure: 250 bar

Min flow: 10l/min

Max flow: 20l/min

Dimensions: 117x70x40mm

The supplied oil flow is, regardless of the load, divided into approximately equal two partial flows.

The deviation can be up to 3%, depending on the correct valve dimensions (regulating piston).

During reverse flow, the streams are recombined.

The division accuracy can be equalized in the last actuators.

MIZAR number: 60694
