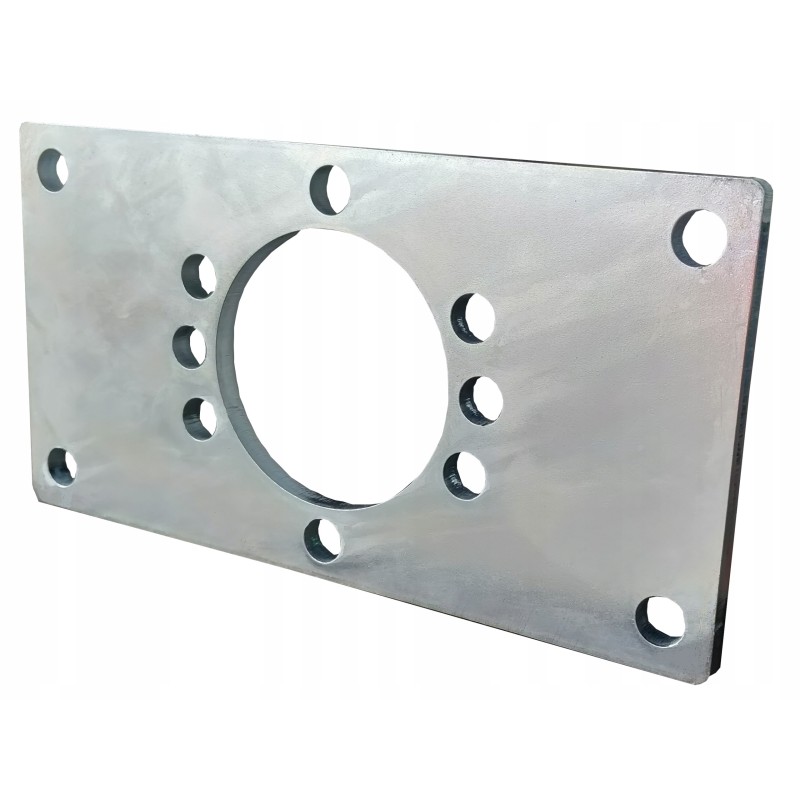

Flange mounting for BMR SMS hydraulic motor

MOUNTING COLLAR FOR BMR SMR and SMS ENGINE Application:

Universal welding plate placed on the centering flange of the hydraulic motor. Stabilizes operation and helps in mounting the engine to other metal structures.

Technical data:

material: weldable steel

dimensions: 250 mm x 130 mm

diameter of the hole for the centering flange: 83 mm

spacing of mounting holes on the engine: 104.6 mm

diameter of holes for twists with the engine: 13.5 mm (8x)

diameter of mounting holes: 13 mm (4x)

IDEAL FOR:

Engines with a centering flange with a diameter of 83 mm, including: for the entire series of hydraulic motors with symbols: BMR, SMR, BMP, OMP, EMP with a flange mounted with 2, 4 or 6 holes, among others. such as (photo):

Also fits the series of engines with symbols: SMS, OMS, OMSS, OMR, OMZS, MS, BMS with a flange mounted with 4 holes, among others. such
