Cylinder eye welded to the piston rod 50w 00 gk30
  • Cylinder eye welded to the piston rod 50w 00 gk30
  • Cylinder eye welded to the piston rod 50w 00 gk30
  • Cylinder eye welded to the piston rod 50w 00 gk30
  • Cylinder eye welded to the piston rod 50w 00 gk30
  • Cylinder eye welded to the piston rod 50w 00 gk30

Cylinder eye welded to the piston rod 50w 00 gk30

1508148080021
Other (SM)
£28.16
Quantity
5 Items

Description

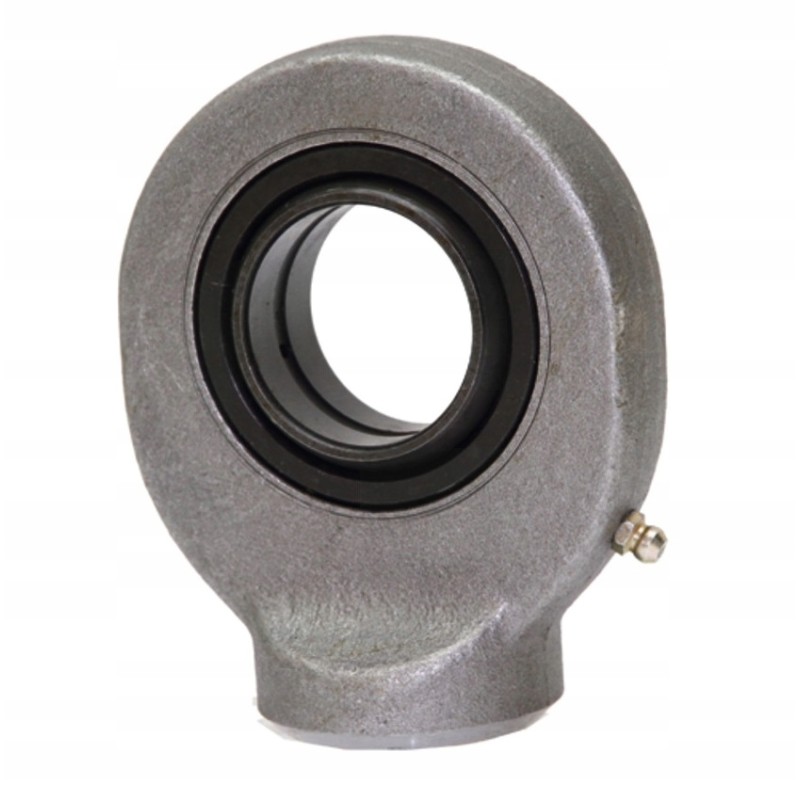

Cylinder eye welded to the piston rod 50W-00 GK30[1365]

It is adapted to work in actuators used in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Material: Steel St 52-3Standard: according to DIN 648Technical specification:L (mm): 87.5

I (mm): 51

Ø d (mm): 30

S (mm): 22

S1 (mm): 19

D1 (mm): 73

D2 (mm): 40

D3 (mm): 34.2

D4 (mm): 4

Tilt angle α: 6mm

Product Details
Other (SM)
1508148080021
1365.UCH.SILWW
5 Items
New

Data sheet

Manufacturer
Other (SM)
Part Number
1365.UCH.SILWW
