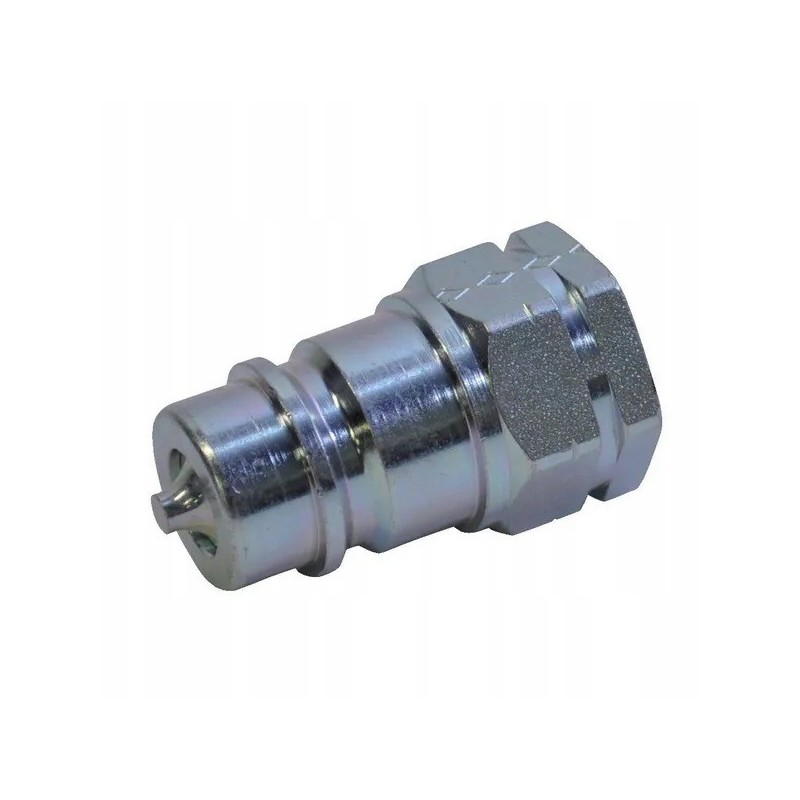

Quick connector ISO 10 internal thread 3 8 BSP plug

Application

Universal use

Agricultural machinery

Municipal technology

Mineral oil based fluids Properties

Standard agricultural connector

Push to connecta

Shape Straight - 2 sides of connection Size (code) BG 2 Size 3/8 inch Connector type No. 1 Quick connector Connector type No. 1 - male/female Male OD1 Connection diameter 17.3 mm Connector type No. 2 Thread Connector type No. 2 - male/female Female AThread diameter of connection No. 2 3/8 inch Number of turns per inch of thread of connection No. 2 19 Thread type of connection No. 2 BSP Possibility of connection under pressure No Standard ISO 7241-1-A Outer diameter 32 mm L1 Total length 49 mm Surface treatment Passivated on white Operating pressure 250 BAR Operating temperature max. 100 °C Operating temperature min. -30 °C Seal material

Nitrile rubber [NBR]

Teflon (PTFE)

Connection type plug
