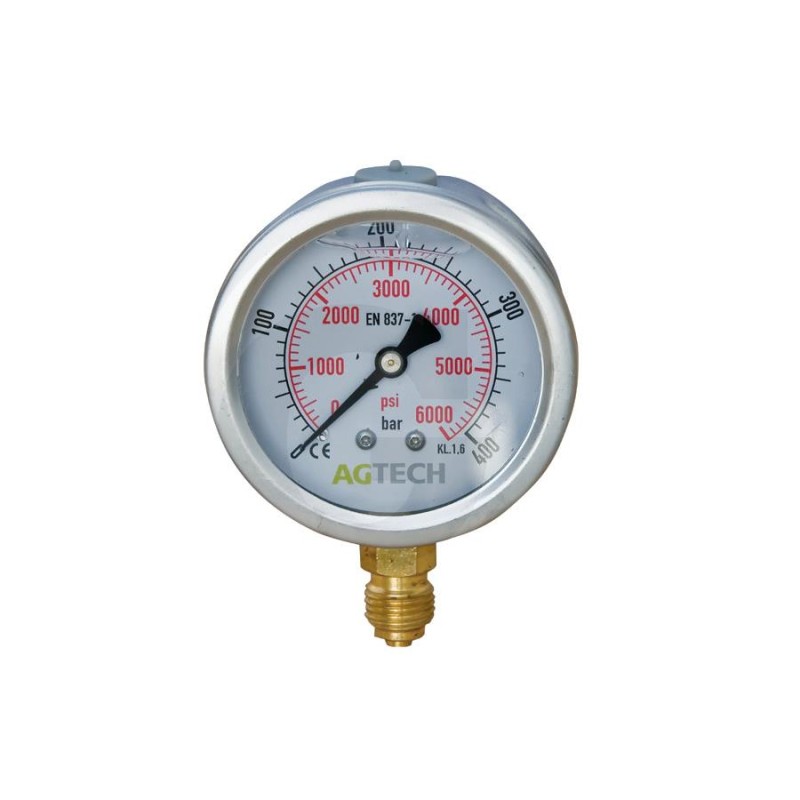

Pressure gauge fi 63 bsp 1 4 dol range 0 400 bar

Pressure gauge fi 63 BSP 1/4' DOWN RANGE 0-400 BAR Measurement range 0 - 400 bar

Characteristic features:

suitable for gaseous media and hydraulic oils that do not attack copper alloys thread type: BSP housing made of chrome-nickel steel (1.4301) plate (window) made of acrylic glass filled with glycerin

Technical data:

blood pressure monitor according to EN 837-1

protection class: IP 65 (protected against access using wire, dustproof, protected against water jet (nozzle) from any angle) accuracy Ø 63mm: 1.6 temperature range - ambient: - 20°C to + 60°C temperature range - medium: max. + 60°C

Fadrex number: 03533

Manufacturer code: 66785000408
