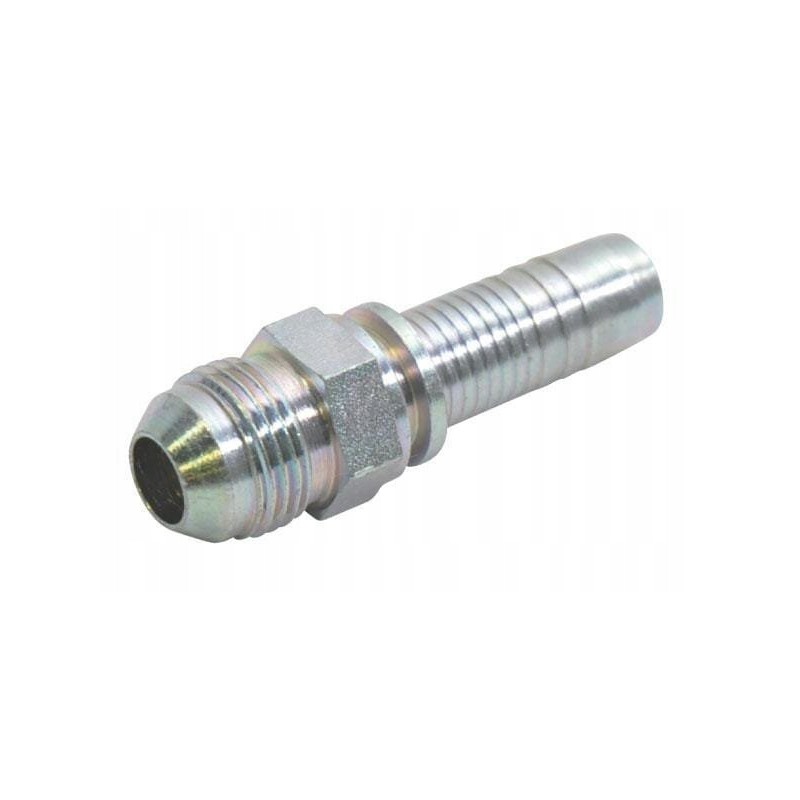

Tip dn20 7 8 unf

DN20-7/8 UNF fitting Parameters

Part number: PC2014

Unit: Piece

Manufacturer: Alfagomma

Cone angle: 37 °

Shape: Straight - 2 sides of connection

Connector type no. 1: Thread

Connector type no. 1 - male/female: Male

Type of connector no. 1 - code: AGJ

Length of connector no. 1: 39.5 mm

Connector thread diameter: 7/8 inch

Thread type connectors: UNF

Wrench size for connector no. 1: 24.0 mm

Connector type no. 2: Hose connector

Connector type no. 2 - male/female: Male

Connection Diameter No. 2: 3/4 inch

Material: Steel

Connection: JIC male thread (UNF thread) with 74° external cone

Type: AGJ

Surface treatment

- Galvanized

- White passivated

Application

Bolted connections on the folded edge of the sheet metal
