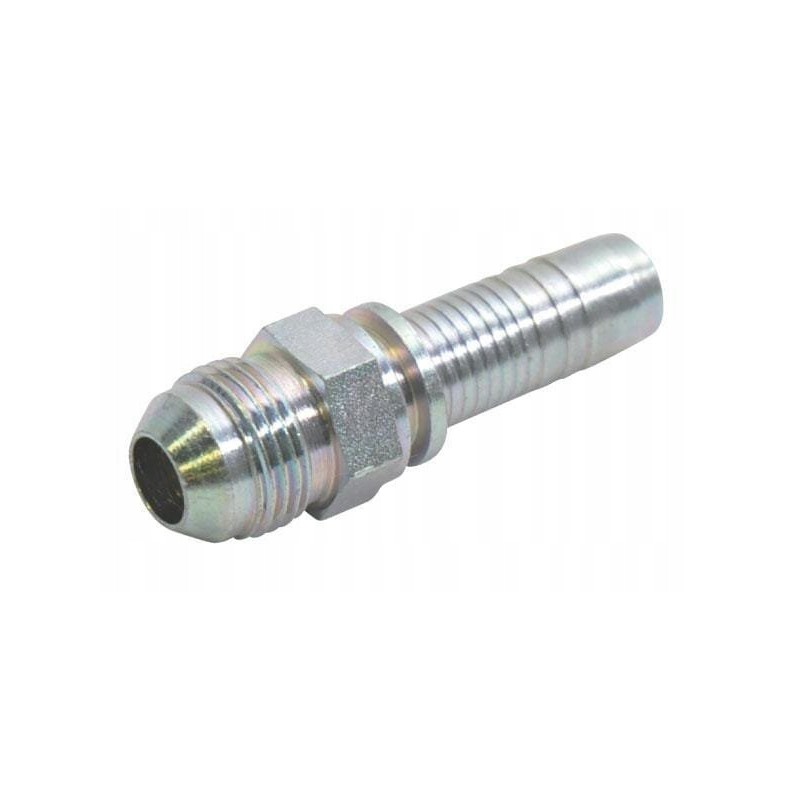

Tip dn05 7 16 unf

Tip DN05-7/16 UNF Parameters

Part number: PC57

Unit: Piece

Manufacturer: Alfagomma

Cone angle: 37 °

Shape: Straight - 2 sides of connection

Connector type no. 1: Thread

Connector type no. 1 - male/female: Male

Type of connector no. 1 - code: AGJ

Length of connector no. 1: 22.2 mm

Connector thread diameter: 7/16 inch

Thread type connectors: UNF

Wrench size for connector no. 1: 12.0 mm

Connector type no. 2: Hose connector

Connector type no. 2 - male/female: Male

Connection Diameter No. 2: 3/16 inch

Material: Steel

Connection: JIC male thread (UNF thread) with 74° external cone

Type: AGJ

Surface treatment

- Galvanized

- White passivated

Application

Bolted connections on the folded edge of the sheet metal
