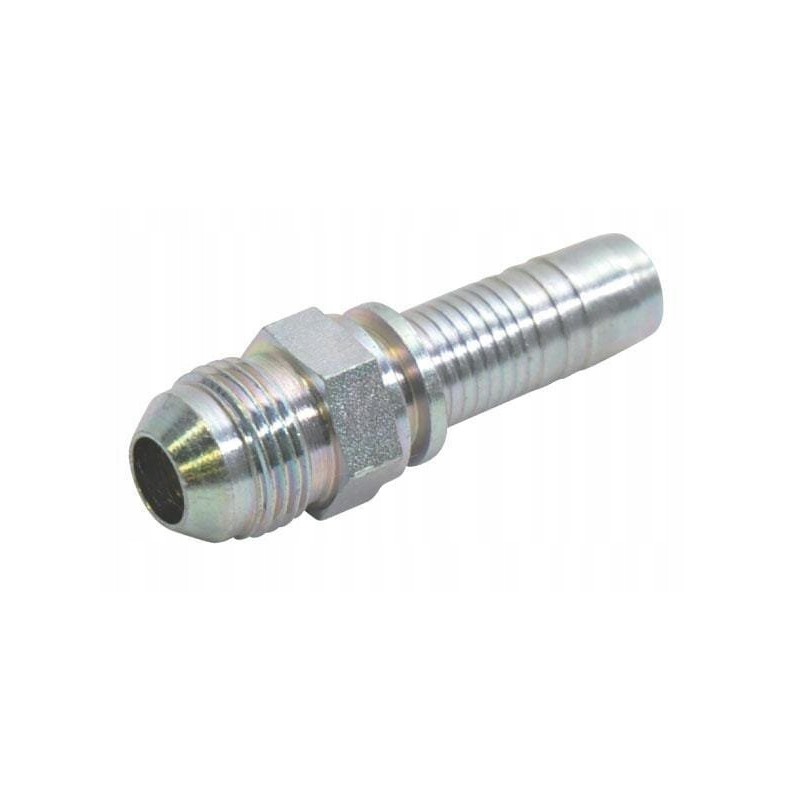

Tip dn32 17 8 unf

Connector DN32-1'7/8 UNF Parameters

Part Number: PC3230

Unit: Piece

Manufacturer: Alfagomma

Cone Angle: 37 °

Shape: Straight - 2 Sides Connector

Connector Type No. 1: Thread

Connector Type No. 1 - Male/Female: Male

Connector Type No. 1 - code: AGJ

Connector No. 1 Length: 52 mm

Connector Thread Diameter: 1-7/8 inch

Connector Thread Type: UNF

Wrench Size for Connector No. 1: 50.0 mm

Connector No. 2 Type: Hose Barb

Connector Type No. 2 - Male/Female: Male

Connection Diameter No. 2: 1-1/4 inch

Material: Steel

Connection: JIC male thread (UNF thread) with 74° external cone

Type: AGJ

Surface treatment

- Galvanized

- White passivated

Application

Bolted connections on the folded edge of the sheet metal
