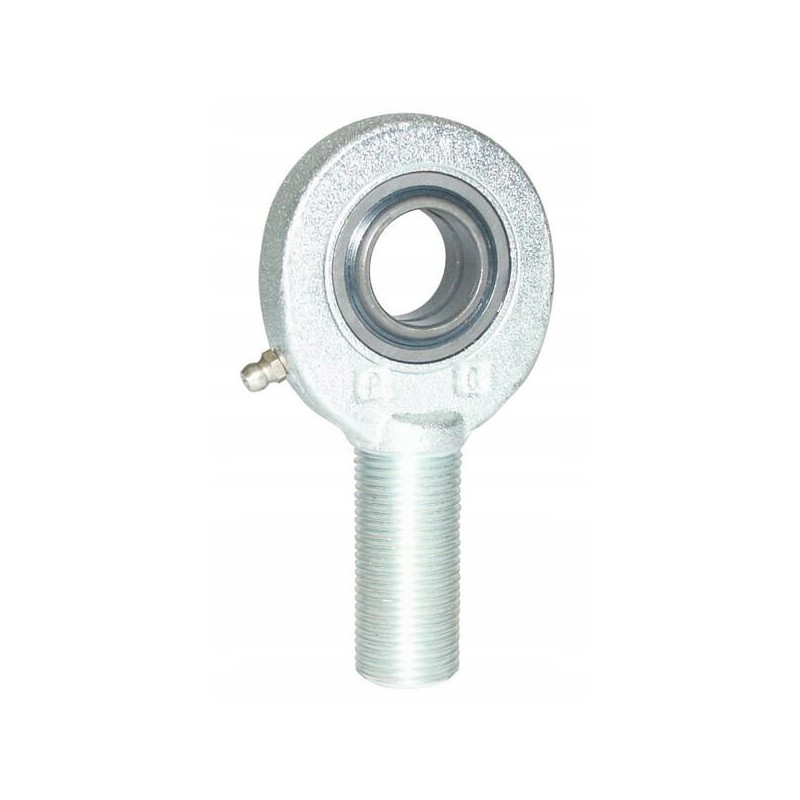

Actuator eye with left external thread ø 20 Parameters
Part number: GAL20DO
Unit: piece
Manufacturer: Mac Power
EAN: 8052461098401
D1 [D1]: 24 mm
L2 [L2]: 27 mm
External thread [M]: M20X1.5 mm
Standard: ISO 12240- 4
Surface treatment: Galvanized
Internal Ø [D]: 20 mm
Total length [L]: 104.5 mm
Thread length [Lf]: 43 mm
Head, width [DE]: 53 mm
Width [H] : 16 mm
D7: 69 mm
ß: 9 °
Load capacities, dynamic Cr: 30 kN
Load capacities: 60 kN
H1: 13 mm
Thread direction: Left hand
Weight: 0.31 kg
Application
- Agricultural machinery
- Cylinder
- Theoretical points of the joint - Suspensions
Properties
- Subject to mandatory maintenance.
- Steel-steel sliding connection
