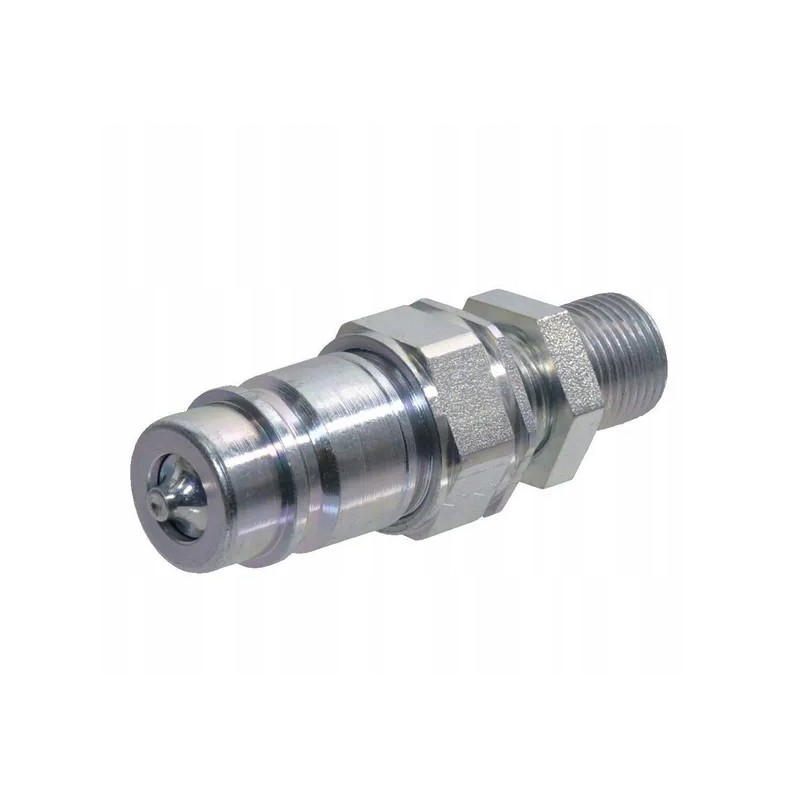

Quick connector plug skp m 1 2 bulkhead thread

SKPM12N18 Quick connector plug SKP-M 1/2' bulkhead thread M18x1.5 12L Application

Universal use

Agricultural machinery

Municipal technology

Mineral oil-based fluids

Properties

Standard agricultural connector

Push to connecta

Shape Straight - 2 sides of the connection

Size (code) BG 3

Connector type No. 1 Quick connector

Connector type No. 1 - male/female Male

Connection diameter 20.6 mm

Connector type No. 2 Thread

Connector type No. 2 - male/female Male

Connection diameter No. 2 12 mm

Thread diameter of connection no. 2 M18

Thread pitch of connection no. 2 1.50 mm

Thread type of connection no. 2 Metric

Possibility of connection under pressure No

ISO 7241-1-A standard

Total length 85 mm

Surface treatment White passivated

Pressure operating 250 BAR

Operating temperature max. 100 °C

Operating temperature min. -30 °C

Seal material Nitrile rubber [NBR], Teflon (PTFE)
