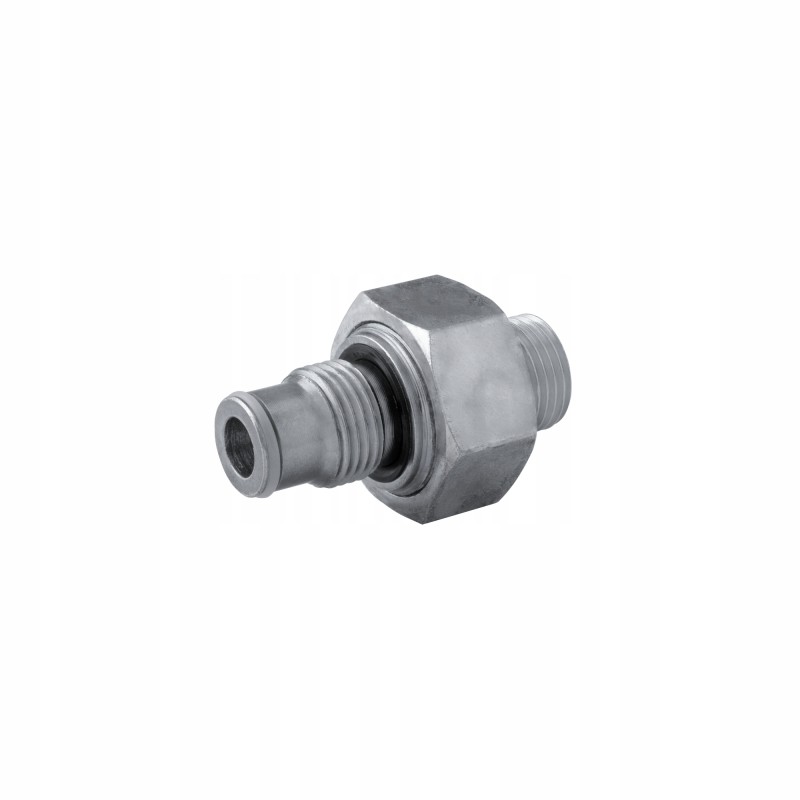

Component pressure sleeve c2 d p40 gz1 2

PRESSURE SLEEVE FOR BADESTNOST P40 Z50 DISTRIBUTOR Production:

Original product of the Badestnost brand, symbol: 1.10.70.210.1

Application:

Widely used in hydraulic systems in construction, agriculture and industry.

The C2-D P40 pressure sleeve allows you to connect two hydraulic distributors in series The design of the sleeve allows direct connection of the manifolds and does not require additional hoses or connectors. It maintains the nominal pressure of the second manifold installed in series and protects the first manifold with back pressure from the second manifold, the so-called 'backflow'.

Technical data:

Threads on both sides: BSP 1/2'

Material: galvanized steel

Recommended for installation on lever-controlled Badestnost P40 manifolds with a flow of 40L/min and electrically controlled Badestnost Z50 manifolds with a flow of 40L/min :
