Mounting to a hydraulic cylinder, diameter 35 mm
  • Mounting to a hydraulic cylinder, diameter 35 mm
  • Mounting to a hydraulic cylinder, diameter 35 mm
  • Mounting to a hydraulic cylinder, diameter 35 mm

Mounting to a hydraulic cylinder, diameter 35 mm

15010483457485
£58.38
Quantity
5 Items

Description

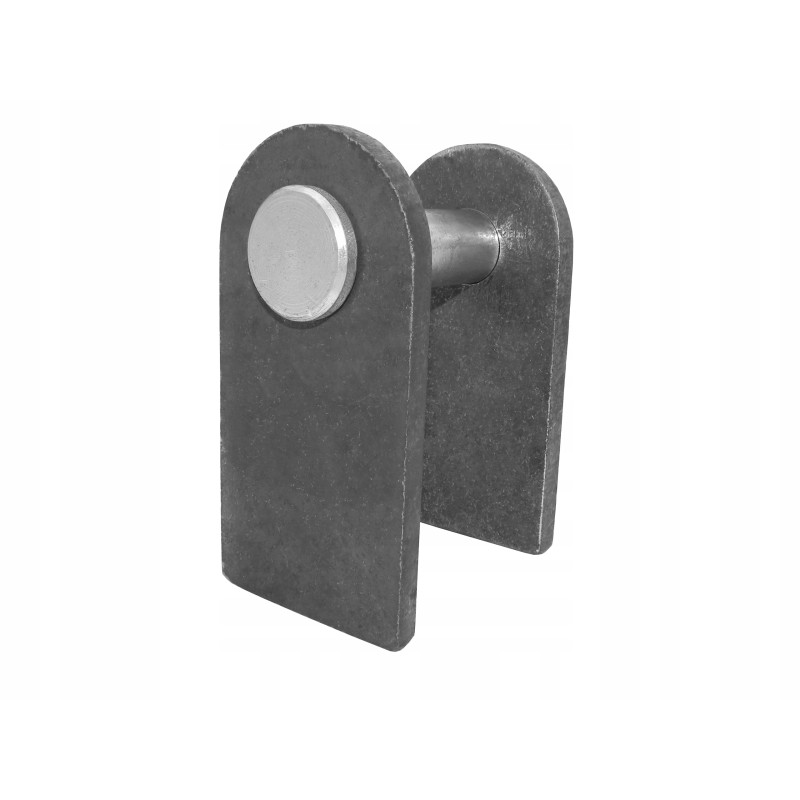

COMPLETE MOUNTING OF THE CYLINDERTwo PLATES FOR WELDING + PINS Application:

Widely used in hydraulic systems in agriculture, construction industry.

Element used for mounting the hydraulic cylinder to a structural element, e.g. frame or machine profile.

Technical data of the sheets:

Pin hole: 35 mm .

Material: hardened weldable steel

Sheet thickness: 10mm

Technical data of the pin:

Width: fi 35mm.

Total length: 108mm.

Maximum spacing of the ears mounted on the pin: 60mm

Material: hardened steel resistant to shear and compression

Coating : galvanized

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010483457485
CJ2F MOUNTING 35
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
CJ2F MOUNTING 35
