Pump connection 1 2 40mm hydrolider type

FLANGE CONNECTION 1/2'- 40mm Production:

Original product of the Hydrolider brand, symbol: 1.40.12.062

Application:

It is widely used in hydraulic systems in agriculture , horticulture, forestry, construction and broadly understood industry.

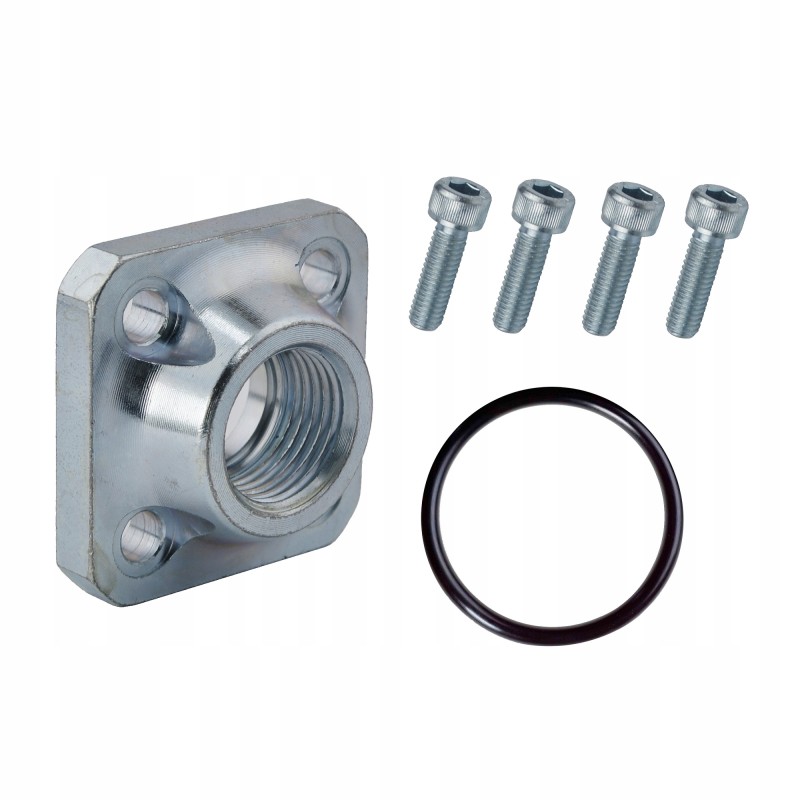

Inch connection complete with screws and seal, screwed into the pump body. Connects the pump with hydraulic lines.

Designed mainly for gear hydraulic pumps and motors of group 2 (20), with German-type connection ports.

Connection:< p>

The use of this connection does not require the use of additional sealing washers on the pump side.

Thread on the cable side: internal inch BSP 1/2'

Required spacing and size of holes assembly and the diameter of the hydraulic hole on the pump body (photo):
