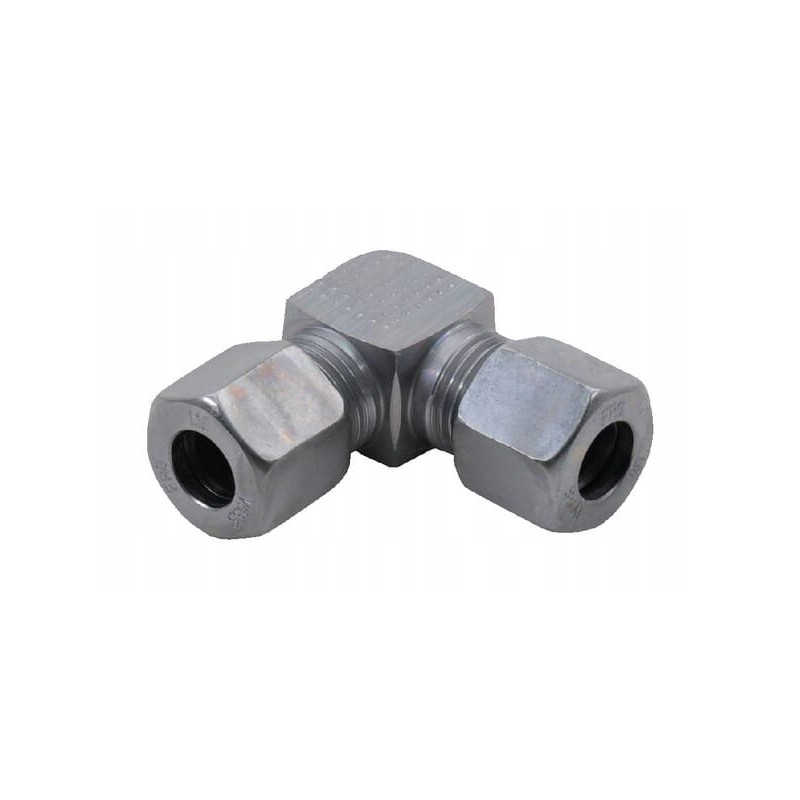

Elbow connector 4ll m8x1 type wv with nuts and pi

4LL M8x1 type WV elbow connector with Voss nuts and rings Parameters

Part number: WV4LL

Unit: Piece

Manufacturer: Voss

Cone angle: 24 °

Shape: Elbow - 2 sides of connection

Connector type no. 1 - male/female: Female

Connection diameter: 4 mm

Connector 1 thread diameter: M8

Connector 1 thread pitch: 1.00 mm

Connector 1 wrench size: 10.0 mm

Connector No. 2 type - male/female: Female

Connection No. 2 diameter: 4 mm

Connection No. 2 thread diameter: M8

Connector No. 2 thread pitch : 1.00 mm

Connection thread type no. 2: Metric

Inner diameter: 4 mm

Angle: 90 °

Working pressure max.: 100 BAR

Series: LL

DIN standard

- 2353

- 2401

Processing surface

- Zinc

- Nickel-plated
