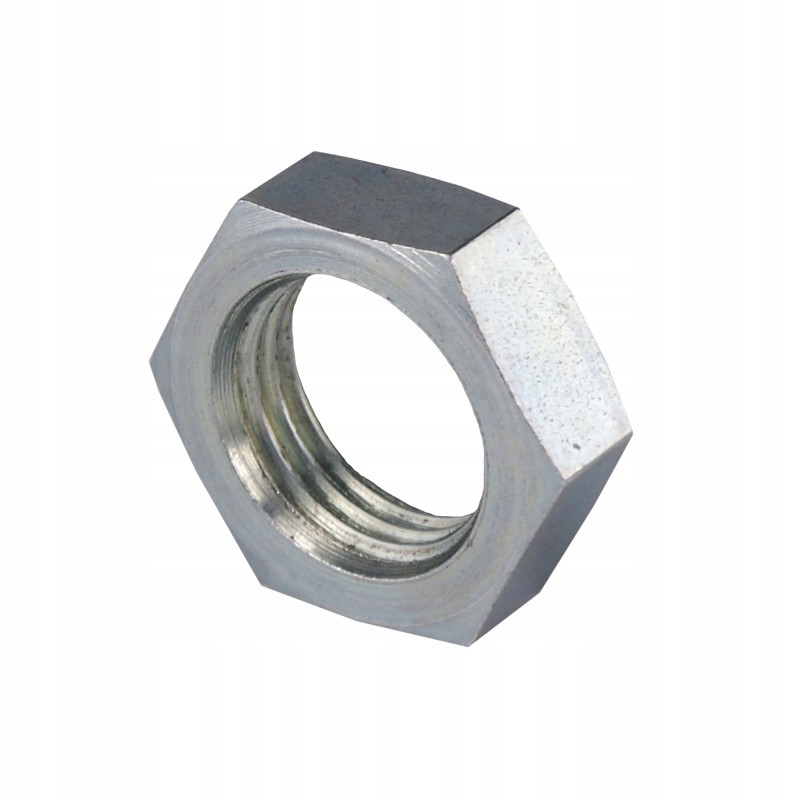

Narrow locknut locknut 1

NARROW COUNTER NUT 1'Production:

Original product of the Hydrolider brand, symbol: 1.60.60.110

Application:

It is widely used in hydraulic systems in agriculture and horticulture , forestry, construction and broadly understood industry.

Helpful data:

BSP 1' thread diameter measured with a caliper:

Outer diameter [mm]: 33.0 - 33.2

Inner diameter [mm]: 30.3 - 30.8

Example application:

fastening quick connectors to fixed elements, e.g. loader (photo):

Technical data:

Thread: inch BSP 1'

Material: weldable steel, galvanized, corrosion-resistant
