Aurochs loader set, 3 sections, floating, l 1000

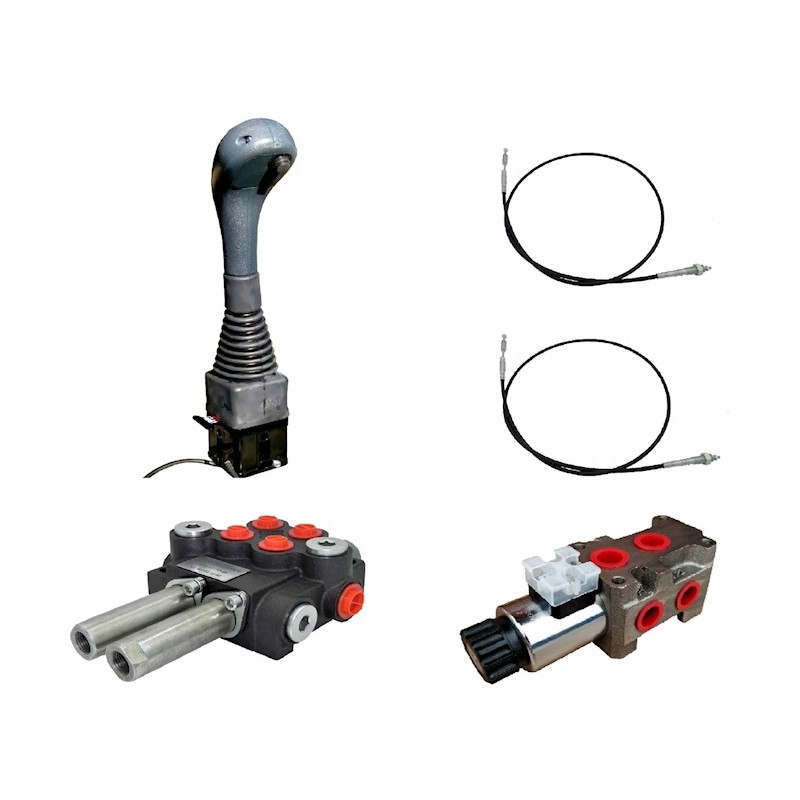

2-SECTION HYDRAULIC SET 40L/min WITH FLOATING SECTIONSet composition:

ball joystick with button

two 1m long lines

2-section hydraulic distributor 40L/min with floating section

electrovalve 6/2 50L/min 12V

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and widely understood industry.

The set is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices where the hydraulic pump capacity does not exceed 40L/min.

Application in TUR front loaders:

Proven in many tractor models, including: :Ursus C-330, C-355, C-360, C-385, 912, 914, 1224, 2812, 3512 Zetor 5211, 7211, 5245, 7245, 8011 MF 235, 255 and others

The set controls two sections in the TUR front loader, i.e. lifting the frame and tilting the shovel.

Example application:

Controlling two independently operating actuators:

General information:

Joystick control has many advantages that make work faster, more pleasant and safe. Joystick means, above all, more comfortable, convenient and precise machine control. The mechanism that allows you to block the joystic handle movements significantly increases the safety of the operator and people who may be near the machine. Installing the joystick inside the cabin and throwing the distributor outside keeps the cabin clean and free of oil leaks.

Joystick:

Designed to mechanically control two sections in the distributor. It has an additional button and an electrical harness output, which allows in the future to use a solenoid valve that will control an additional, third section, e.g. in the TUR loader with a crocodile or a bale grabber.

The internal structural elements are made of aluminum, the housing is made of strong plastic. Blocking the ability to control using the safety button. European production by NIMCO.

Links:

Standard cable length: 1m (this is what we send unless the customer specifies otherwise).

Threads on the distributor side: cable body M16x1.5, cable tie M6x1.5.

On the joystick side, a ball with a diameter of 14mm.

Two-section hydraulic distributor:

Maximum flow up to 40L/min.< p>

Control of single-sided and double-sided cylinders.

Recommended to control the distributor using cables and joystick.

Control:

Both three-position sliders (1 - 0 - 2), on a spring, i.e. they return to the neutral position on their own if the cable is loose.

Neutral position 0 (the cable is loose), the cylinder piston rod is standing - the oil goes to the overflow.

Working position 1 (the cable pulls the slider), the cylinder piston rod extends.

Working position 2 (the cable pushes the slider), the cylinder piston rod retracts.

Connection:

Threads internal in the body: supply: 1/2'', return: 1/2'', sections: 3/8''

Cable connections:

Internal tube thread: M16x1 .5

Inner thread of the slider tip: M6x1.5

Pressure range:

Maximum supply pressure: 250Bar

Maximum pressure on the return: 50Bar

Maximum pressure on the sections: 300Bar

Overflow valve factory set to 175Bar

Possibility of self-adjustment, full turn change by 30Bar.

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Recommended hydraulic oil based on mineral oil, e.g. HL 32 or HL 46

Solenoid valve 6/2 for the third section:

Maximum flow up to 50L/min

Power supply: 12V

Control:

Two-position slider on a spring, i.e. it returns to the neutral position on its own after cutting off the power supply.

Principle of slider operation:

Position 1 (current supply to the coil cut off), it is possible to control cylinder no. 1.

Position 2 (current supply to the coil is open), it is not possible to control cylinder no. 1, but it is possible to control cylinder no. 2.

Connection:

Internal threads in the body:

Supply connection port: 1/2''

Return connection port: 1/2''

Connection ports sections: 1/2''

Pressure range:

Maximum supply pressure: 210Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 250Bar

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Recommended hydraulic oil based on mineral oil, e.g. HL 32 or HL 46
